AL01928 Part No AL01928
Ratio: 1.25:1 reduction.
Input rotation = Clockwise. Suitable for electric or fuel powered motors.
A High Speed gearbox designed for applications requiring higher operating speeds than those offered by our standard range of agricultural gearboxes. The gearbox is made with quality spiral bevel gears with helical teeth. The helical design produces less vibration and noise than conventional straight cut mitre gears making them suitable for higher operating speeds.
(Average dry weight = 33Kg.)
Shaft size = 1 ¾” Plain with ½” keyway
Oil capacity = 2.3lt (approx.) - SAE 90 EP gear oil.
Notes:
: Rotation MUST be as specified on the drawings.

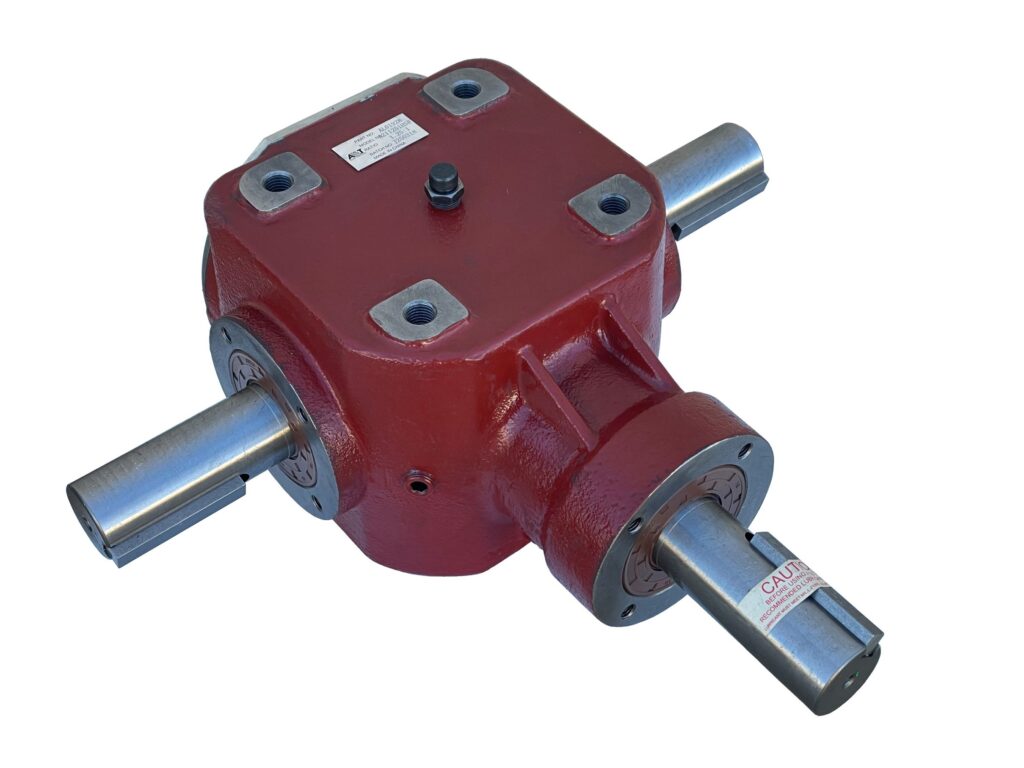

: Photo shows model with 6 spline shaft.
: Ratings given are approximate. Prototype testing may be required for specific applications.
| Part No | Model | Ratio | Input | Output | |||
| R.P.M |
HP | KW | NM | NM | |||
| AL01928 |
A211251HSR | 1.25:1 | 540 | 120 | 90 | 1591 | 1988 |
| 1000 | 194 | 145 | 1384 | 1730 | |||
| 1400 | 241 | 180 | 1227 | 1533 | |||
| 1800 | 281 | 210 | 1114 | 1392 | |||
| 2000 | 321 | 240 | 1046 | 1232 | |||

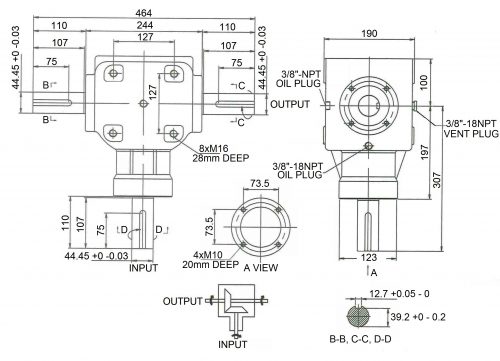

Click on drawing to enlarge.
