A21 H

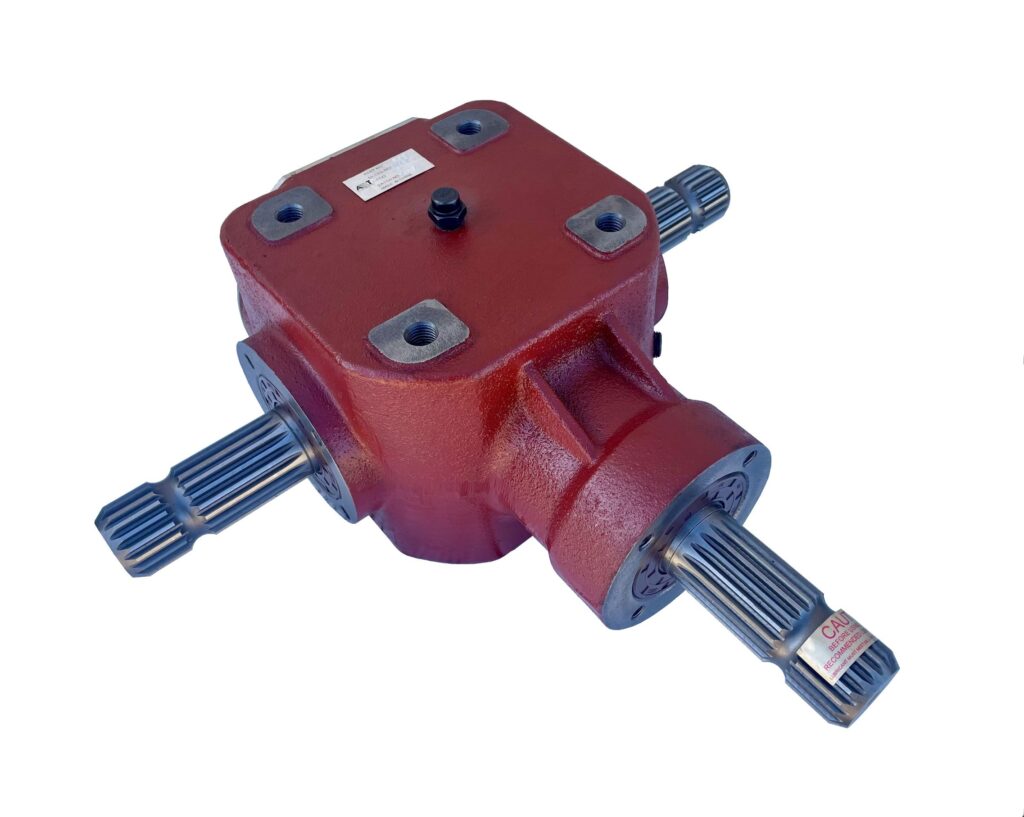

A21-H (High Speed) gearboxes are designed for applications requiring higher operating speeds than those offered by our standard range of agricultural gearboxes.

The gearboxes are made with quality spiral bevel gears with helical teeth. The helical design produces less vibration and noise than conventional straight cut mitre gears making them suitable for higher operating speeds & H.P.

(Average dry weight = 33Kg.)

Shaft sizes = 1 ¾” Plain with ½” keyway or 13/4 Z20 spline.

Input shaft = Z

Oil capacity = 2.3lt (approx.) - SAE 90 EP gear oil.

Note: Rotation must be as specified on the drawings.
