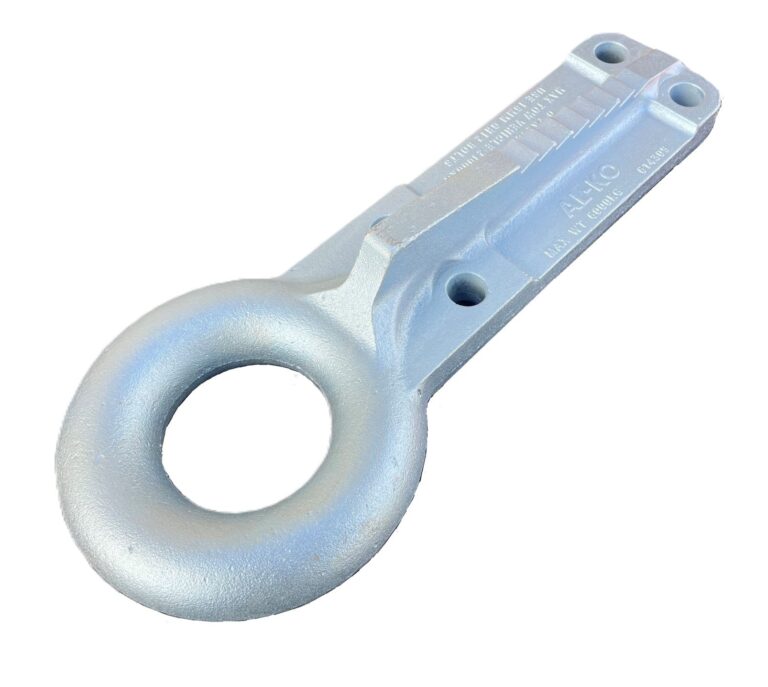

AL03064 75mm 3500 kg ROAD RATED

P/No AL03064.

 A high strength ductile 75mm ring coupling, ADR rated to 3500 Kg for on-road and 6000 Kg for off-road (agricultural) applications.

Ring section = 40mm

Can be used with optional hand brake plate and lever P/No AL03256 if parking brake is required for electric brake applications.

Mounting hole pattern = 52 x 182 mm same as standard override trailer couplings.

Hole Diameter = 16.8mm
