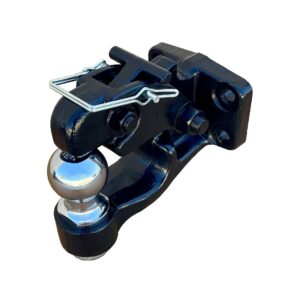

6 ton DUAL PURPOSE BALL AND HITCH
Combination pintle hook with 50mm ball.
Hook designed for use with a 76mm Ring Coupling.
Made from drop forged alloy steel and finished with black powder coat for durability and corrosion resistance.
Part Number | AL03031 |
Tow rating on hook | 6000 kg |
Tow rating on ball. On-road |
3500 kg |
Weight | 3.9 kg |
D-Value ball | 19.92 kN |
D-Value hook | 34.08 kN |
CRN | 44543/44544 |
Mounting hole dimensions. |
Horizontal = 85mm Vertical = 45mm |
