DUST CAPS
Aline Trading stock a wide range of replacement dust caps suitable for axles used in on- road and off-road, agricultural applications.

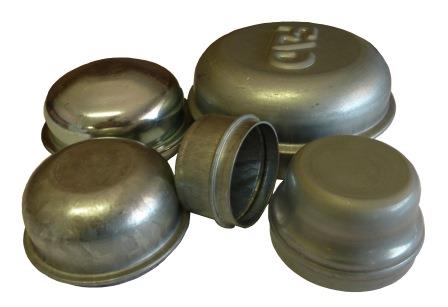

Knock in pressed metal caps are available in metric or imperial fitments.

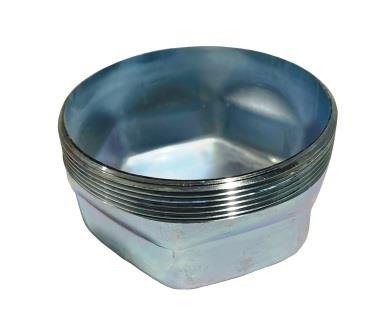

Screw in pressed metal caps for agricultural axles in metric fitments.

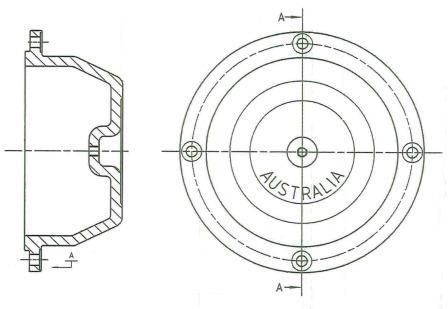

We also have a selection of cast iron bolt on caps for heavy duty agricultural axles.
PRODUCT SPECS & PHOTOS
| Knock in Dust Caps – Imperial | |

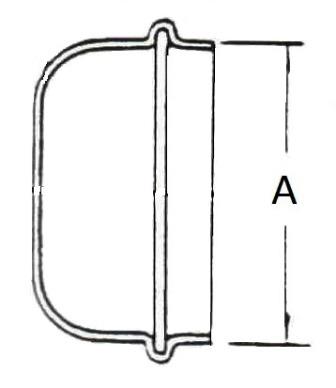

| Part No | Size – Dimension A |
| AL03147 | 1 3/4″ – 44.45mm |
| AL03400 | 1 3/4″ – 44.45mm BEARING BUDDIES – EA |
| AL03517 | 2″ – 50.8 mm |
| AL03089 | 2 1/16″ – 52.387 mm |
| AL03065 | 2 1/2″ – 63.5mm |
| AL03335 | 2.441″ (62mm) – DEXTER 12″ Electric hub. |
| AL03263 | 2.72″ – (69mm) |
| AL03334 | 3″ – 76.2mm |
| Knock in Dust Caps – Metric | |
| PART No | Size – Dimension A |
| AL03257 | 59mm |
| AL03043 | 62mm |
| AL03019 | 80mm |
| AL03020 | 85mm |
| AL03042 | 90mm |
| AL03041 | 100mm |
| AL03044 | 110mm |
| AL03021 | 120mm |
| Screw In Dust Caps – Metric | ||
| Part No | Series | Thread |
| AL03560 | 50L | M53.5×1.5 |
| AL03466 | 50 | M63.5×1.5 |
| AL03472 | 60 Old | M73.5×1.5 |
| AL03559 | 60 New | M81.5×1.5 |
| AL03478 | 70 | M86.5×1.5 |
| AL03482 | 80 | M101.5×1.5 |
| Bolt on Cast Iron dust caps | ||
| Part No | Series | No Screws |
| AL03350 | H50/H50HD | 3 |
| AL03409 | 63 | 3 |
| AL03410 | 75/80 | 3 |
| AL03341 | 90/100 | 4 |
| AL03411 | 110 | 6 |
| AL03412 | 150 | 6 |
