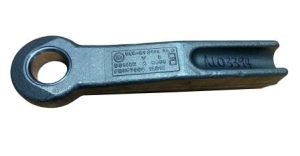

AL03394 50mm 314kN ROAD RATED

The AL03394 is an on-road rated 50mm weld on towing eye. This unit has a load rating of 314kN and is suitable for larger road trailers.

Note: This model is supplied with a pressed in replaceable bush in the eye section.

PRODUCT SPECS

Part number AL03394
Model ROE57005
D value 314 (kN)
DIN 74053
Eye Size Id X OD x Thickness 50mm x 110mm x 45mm
Weld in body section 80H x 75W x 190L
Centre of eye to weld in section 195
Overall length 440mm
Weight 13.4 (kg)
Down Load 1000 kg
CRN 49663
Material Heat-treated steel St 52-3
