AL00284 – 281x101x30

The 82 Triple Series lights are a compact modern designed lamp for smaller vehicles with a chrome finish ABS bracket and clear PMMA lens.

PRODUCT SPECS

Part NoAL00284
Model82CARW
Size281mmx101mmx30mm
FunctionStop – Tail – Indicator – Reverse
Voltage12V
Warranty5 Years
RatedIP67 Waterproof
ApprovalECE Australian Road approved

PRODUCT PHOTOS

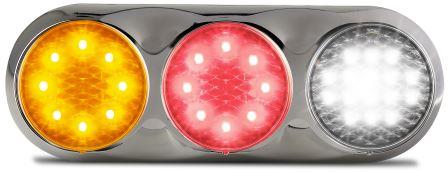

ACTIVE

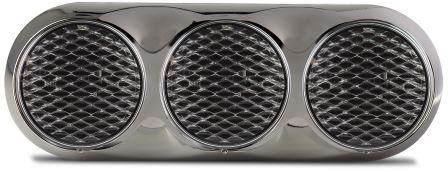

INACTIVE

Fitting Instructions:

Horizontally mount bracket onto flat surface with screws provided, ensuring TOP markings are positioned above centre holes. Remove backing from 3M tape on back of lens, run wires through desired centre hole and align the locator nodule on the end of the lens with the corresponding indentation on bracket. Apply firm hand pressure to ensure lamp adhesion. Repeat for each lens until all are secured securely.
