LEAF SPRING SUSPENSIONS
Aline Trading P/L present a range of conventional leaf spring kits suitable for on-road and off-road trailers.
Our spring kits are available in a range of load capacities and designs to suit your needs.

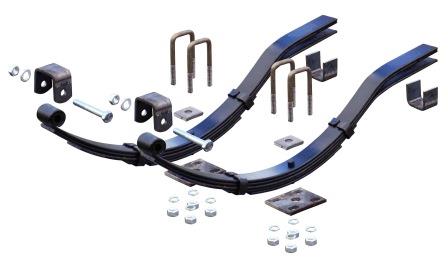

Kits are supplied with all components required for fitment including U bolts and fish plates to secure the axle.
Please contact us today to discuss your requirements.
PRODUCT SPECS & PHOTOS
| Single axle spring sets | |||
| Style | No Leaves | Capacity Kg | Part No |
| Eye – Slipper 45mm wide | 3 | 560 | AL01140 |
| 4 | 740 | AL01141 | |
| 5 | 920 | AL01142 | |
| 6 | 1100 | AL03029 | |
| 7 | 1300 | AL01144 | |
| 9 | 1660 | AL01663 | |
Eye – Slipper 60mm wide
| 5 | 1150 | AL03030 |
| 6 | 1400 | AL01145 | |
| 7 | 1570 | AL03063 | |
| 9 | 2000 | AL03015 | |
Eye – Eye 60mm wide | 5 | 1200 | AL03290 |
| 6 | 1500 | AL03033 | |
| 7 | 1700 | AL03035 | |
Off-Road Eye-Eye 60mm wide
| 5 | 1150 | AL03414 |
| 6 | 1350 | AL03377 | |
| 7 | 1550 | AL03287 | |
| 8 | 1750 | AL03285 | |
| 9 | 2000 | AL03272 | |

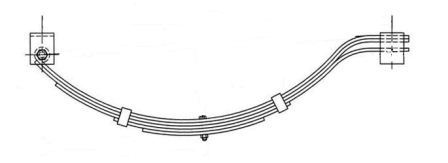

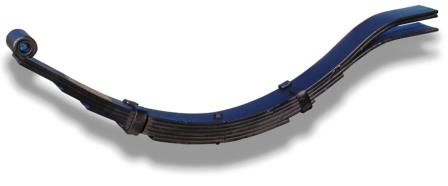

Single. Eye – Slipper.

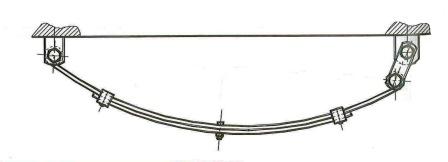

Single. Eye – Eye.

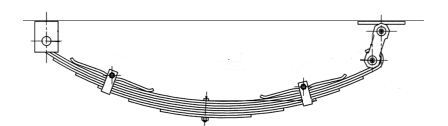

Single. Off-Road Eye-Eye.
| Tandem Axle Spring Sets | |||
| Style | No Leaves | Capacity Kg | Part No |
| Eye – Slipper 45mm Wide | 4 | 1110 | AL03162 |
| 5 | 1380 | AL03309 | |
| 6 | 1650 | AL03007 | |
| 7 | 1950 | AL03282 | |
| Eye – Slipper 60mm Wide | 5 | 1725 | AL03327 |
| 6 | 2100 | AL03328 | |
| 7 | 2350 | AL03279 | |
| Tandem Rocker 60mm Eye – Eye | 5 | 2000 | AL03028 |
| 6 | 2500 | AL03004 | |
| 7 | 3000 | AL02294 | |
| Tandem Roller Rocker Offset for 14″ Wheels 60mm Eye – Loop | 6 | 2500 | AL03166 |
| 7 | 3000 | AL03423 | |
| 8 | 4000 | AL02292 | |
| Tandem Roller Rocker Centered 60mm Eye – Loop | 7 | 3000 | AL03034 |
| 8 | 4000 | AL03011 | |
| 9 | 5000 | AL03167 | |

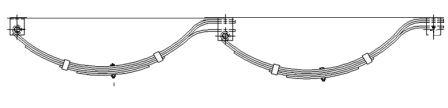

Tandem Eye – Slipper.

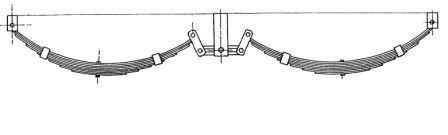

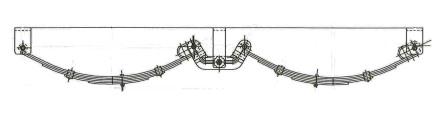

Tandem Rocker.
Tandem Roller Rocker.
Tri Axle Roller Rocker Spring Sets Centred springs. Suit 16″ wheels. | ||
| No Leaves | Capacity Kg | Part No |
| 8 | 6000 | AL03054 |
| 7 | 4500 | AL03340 |
Tri Axle Roller Rocker Spring Sets Centred & Offset springs. Suit 14″ Wheels. | ||
| No Leaves | Capacity Kg | Part No |
| 8 | 6000 | AL02757 |
| 7 | 4500 | AL03340 |

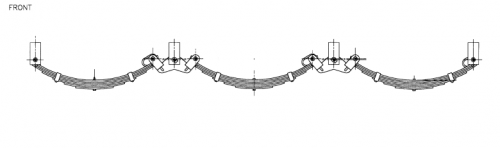

Tri Axle Roller Rocker.
