RHW2000
The RHW2000 is a quality made general purpose hand winch suitable for the large jobs like such as larger boat trailers, car trailers & many other applications.
This winch is presented in 3 standard variations.
Features:
– Compact design
– Formed reinforcements in frame for added frame strength
– Very low torque required for ease of operation
– One way ratchet. Free spool in off direction
– High quality one piece hardened steel gears
– Superior finish quality for appearance and corrosion resistance
– Extensively tested and QA inspected
PRODUCT SPECS
| Part No | Description |
| AL01636 | Winch only |
| AL01637 | With cable and safety hook |
| AL01638 | With strap and safety hook |
| Capacity | 2000lb / 909Kg |
| Gear ratio | 8.8:1 |
| Hub diameter | 63mm |
| Spool O.D | 160mm |
| Cable | 6.35mm diameter x 10m long |
| Strap | 50mm x 6.1m long – 2t rated |
| AL01636 | 6.5 Kg |
| AL01637 | 8.4 Kg |
| AL01638 | 6.9 Kg |
PRODUCT PHOTOS

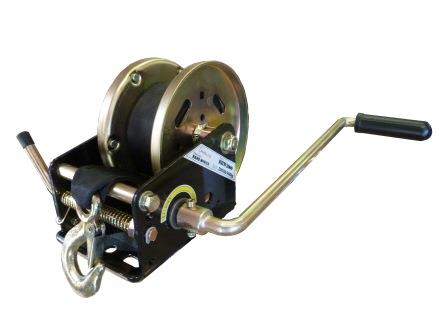

AL01638 shown.

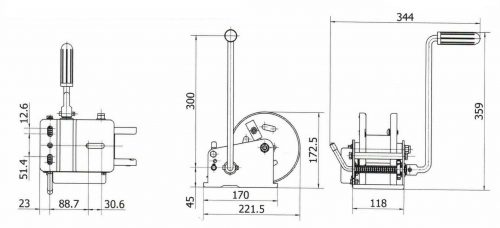

Click on drawing to enlarge.
