RHW1200
The RHW1200 is a very popular general purpose hand winch used in numerous applications such as boat trailers, trailers and farm machinery.
Features:
– Compact design
– Formed reinforcements in frame for added frame strength
– Very low torque required for ease of operation
– One way Ratchet. Free spool in off direction
– High quality one piece hardened steel gears
– Superior finish quality for appearance and corrosion resistance
– Extensively tested and QA inspected
The RHW1200 is presented in 5 standard variations.
PRODUCT SPECS
| Part No | Description |
| AL01630 | Winch only |
| AL01633 | Winch & cable, with safety hook |
| AL01634 | Winch & cable with “S” hook |
| AL01635 | Winch & strap with “S” hook |
| AL01642 | Winch & strap with Safety hook |
| Capacity | 1200lb ( 545.45 Kg) |
| Gear ratio | 4.1:1 |
| Hub diameter | 45mm |
| Spool diameter | 133mm |
| Cable | 4mm diameter x 10m long |
| Strap | 50mm x 6.1m long. – 1.5t rated |
PRODUCT PHOTOS

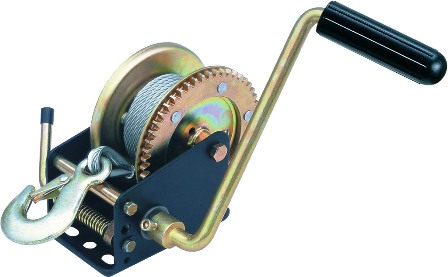

AL01633 shown.

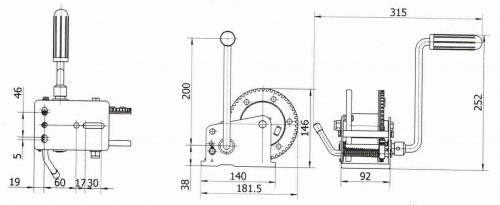

Click on drawing to enlarge.
