WINCH MOUNTS

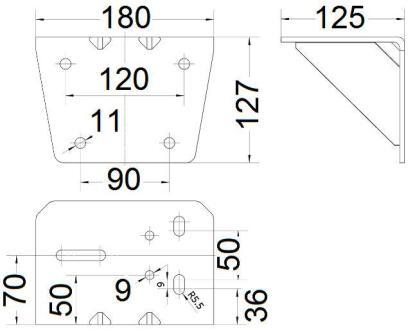

This winch mount is designed for use with hand winches up to 1200lb capacity (500kg).

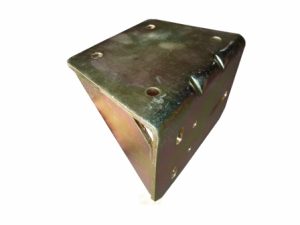

The mount is fabricated from pressed steel and then zinc plated. It is designed to be bolted in position but can also be welded.

Part Number = AL01562

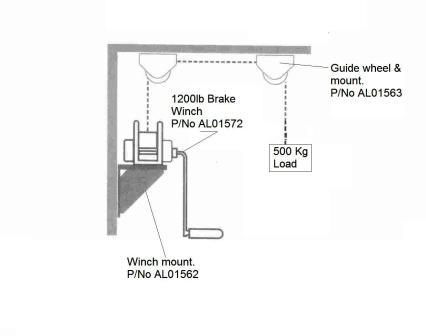

Note: These mounts can be used with our guide rollers AL01563 to make a cable guide system for your winch. These systems are common on grain bin covers, stock crate gates etc.
