YOKES
Aline Trading stock a comprehensive range of PTO yokes in various capacities, bore configurations and clamping methods.
These yokes are suitable for repairing old shafts, modifying shafts for different applications and making items like single or double universal joints.
The yokes are available in 4 main styles (photos at bottom of page):
– Plain bore. Used to fit on machinery with plain (non -splined) shafts with keyways. These yokes are supplied with keyways and grub screws or clamp bolts as required by the design of the yoke.
– Quick release.These yokes are fitted with either one or two push release pins (depending on the size) and are designed to fit on splined shafts where the PTO shaft needs to be uncoupled on a regular basis.

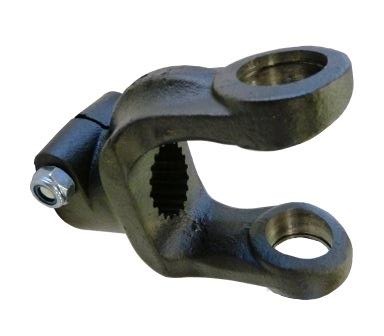

– Clamp bolt.These yokes are fitted with single or double clamping bolts (depending on the size) and are designed to fit on splined shafts where the PTO shaft needs to be held securely in position with and is only removed periodically for servicing etc. Commonly fitted to the implement end of a PTO shaft.
– Tube yokes.These yokes fit directly onto the telescopic tube of your PTO shaft to form the inner half of the universal joint. They are supplied with differing bore sizes to suit either the inner or outer tube section. These yokes are held in position by a heavy duty roll pin. (Supplied separately)
PRODUCT SPECS
| Series 1 Yokes | |||
Bearing size. 22mm x 54mm | |||
| Series | Part No | Bore | Fixing |
| 1 | AL00025 | 25mm – 8mm KEY | S/SCREW |
| 1 | AL00024 | 1″ – 1/4″ Key | S/SCREW |
| 1 | AL00027 | 13/8 Z6 – SPLINE | Q/RELEASE |
| 1 | AL00028 | 13/8 Z21 – SPLINE | C/BOLT |
| 1 | AL00465 | 11/4″ – 5/16″ KEY | C/BOLT |
| 1 | AL00555 | 13/8Z21 – SPLINE | Q/RELEASE |
| Series 2 Yokes | |||
| Bearing size. 23.8mm x 61.3mm | |||
| Series | Part No | Bore | Fixing |
| 2 | AL00547 | 1″ – 1/4″ KEYWAY | C/BOLT |
| 2 | AL00556 | 13/8Z21 – SPLINE | C/BOLT |
| 2 | AL00557 | 13/8Z6 – SPLINE | Q/RELEASE |
| 2 | AL00558 | 13/8Z21 – SPLINE | Q/RELEASE |
| 2 | AL00559 | 13/8Z6 – SPLINE | C/BOLT |
| 2 | AL00560 | 11/4″ – 5/16 KEYWAY | C/BOLT |
| 2 | AL00562 | 25mm – 8mm KEYWAY | C/BOLT |
| 2 | AL00564 | 1″ – 5/16″ KEYWAY | S/SCREW |
| 2 | AL00565 | 11/4″ – 5/16″ KEYWAY | S/SCREW |
| 2 | AL00566 | 25mm – 8mm KEYWAY | S/SCREW |
| 2 | AL00567 | 30mm – 8mm KEYWAY | S/SCREW |
| Series 4 Yokes | |||
| Bearing size. 27mm x 74.6mm | |||
| Series | Part No | Bore | Fixing |
| 4 | AL00569 | 13/8Z6 – SPLINE | Q/RELEASE |
| 4 | AL00570 | 13/8Z21 – SPLINE | Q/RELEASE |
| 4 | AL00571 | 13/8Z6 – SPLINE | C/BOLT |
| 4 | AL00572 | 13/8Z21 – SPLINE | C/BOLT |
| 4 | AL00576 | 35mm – 10mm KEYWAY | C/BOLT |
| 4 | AL00577 | 11/4″ – 5/16″ KEYWAY | C/BOLT |
| 4 | AL00579 | 13/8″ – 3/8″ KEYWAY | C/BOLT |
| 4 | AL00582 | 25mm – 8mm KEYWAY | S/SCREW |
| 4 | AL00583 | 30mm – 8mm KEYWAY | S/SCREW |
| 4 | AL00584 | 11/2″ – 3/8″ KEYWAY | S/SCREW |
| 4 | AL00585 | 11/4″ – 8mm KEYWAY | S/SCREW MULTI |
| Series 6 yokes | |||
| Bearing size. 30.2mm x 92mm | |||
| Series | Part No | Bore | Fixing |
| 6 | AL00587 | 13/8Z6 – SPLINE | Q/RELEASE |
| 6 | AL00588 | 13/4Z6 – SPLINE | Q/RELEASE |
| 6 | AL00589 | 13/8Z21 – SPLINE | Q/RELEASE |
| 6 | AL00590 | 13/4Z20 – SPLINE | Q/RELEASE |
| 6 | AL00591 | 13/8Z6 – SPLINE | C/BOLT |
| 6 | AL00592 | 13/8Z21 – SPLINE | C/BOLT |
| 6 | AL00593 | 35mm – 10mm KEYWAY | C/BOLT |
| 6 | AL00594 | 11/2″ – 3/8″ KEYWAY | C/BOLT |
| 6 | AL00595 | 11/4″ – 5/16″ KEYWAY | C/BOLT |
| 6 | AL00596 | 13/8″ – 3/8″ KEYWAY | C/BOLT |
| 6 | AL00598 | 13/4Z20 – SPLINE | C/BOLT |
| 6 | AL00599 | OUTER TUBE YOKE | R/PIN |
| 6 | AL00600 | INNER TUBE YOKE | R/PIN |
| 6 | AL00632 | ROLL PIN FOR TUBE YOKES | – |
| Series 8 Yokes | |||
| Bearing size. 34.9mm x 106.5mm | |||
| Series | Part No | Bore | Fixing |
| 8 | AL00607 | 13/8Z6 – SPLINE | Q/RELEASE |
| 8 | AL00608 | 13/4Z6 – SPLINE | Q/RELEASE |
| 8 | AL00609 | 13/8Z21 – SPLINE | Q/RELEASE |
| 8 | AL00610 | 13/4Z20 – SPLINE | Q/RELEASE |
| 8 | AL00612 | OUTER TUBE YOKE | R/PIN |
| 8 | AL00613 | INNER TUBE YOKE | R/PIN |
| 8 | AL00632 | ROLL PIN FOR TUBE YOKES | – |
| 8 | AL00614 | 11/2″ – 3/8″ KEYWAY | S/SCREW |
| 8 | AL00615 | 40mm – 10mm KEYWAY | S/SCREW |
| 8 | AL00611 | 13/8Z6 – SPLINE | C/BOLT |
| 8 | AL00617 | 13/4Z6 – SPLINE | C/BOLT |
| 8 | AL00618 | 13/8Z21 – SPLINE | C/BOLT |
| 8 | AL00619 | 13/4Z20 – SPLINE | C/BOLT |
| Series 9 Yokes | |||
| Bearing size 41 x 108.4 | |||
| Series | P/No | Bore | Fixing |
| 9 | AL00639 | 1 3/4Z6 – SPLINE | Q/RELEASE |
| 9 | AL00640 | 1 3/4Z20 – SPLINE | Q/RELEASE |
PRODUCT PHOTOS

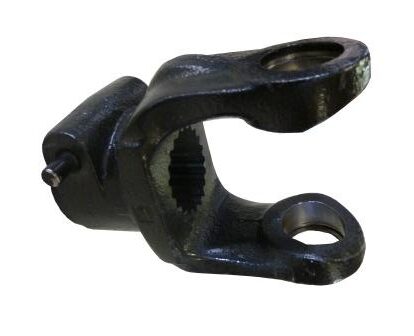

Splined quick release yoke.
