CLUTCH PARTS
Aline Trading Pty Ltd stock a range of spare parts for the Aksan range of friction clutches.
These include, Replacement friction discs, clutch hubs, clutch springs and more.
Please see below for details.
PRODUCT SPECS

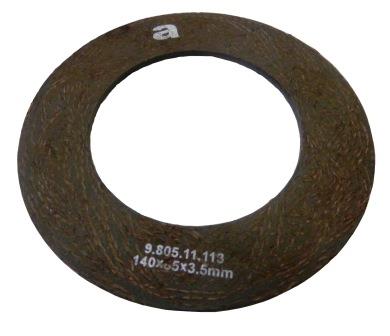

| Clutch Friction Plates | |
| Part No | Size – OD x ID |
| AL00363 | 140 x 83 |
| AL00364 | 153 x 91 |
| AL00365 | 160 X 97 |
| Clutch Hubs | ||
| Part No | FITS | Bore |
| AL00346 | BSD1 FRICTION O/RUN | 13/8Z6 CB |
| AL00351 | BS1-BSM1 | 13/8Z6 CB |
| AL00357 | BS1-BSM1 | 11/4″ PLAIN CB |
| AL00361 | BS1-BSM1 | 13/8″ PLAIN CB |
| AL00352 | BS2-BSM2 | 13/8Z6 CB |
| AL00371 | BS2-BSM2 | 13/8Z21 CB |
| AL00353 | BS2-BSM2 | 13/4Z6 CB |
| AL00358 | BS2-BSM2 | 13/4Z20 CB |
| AL00360 | BS2-BSM2 | 11/2″ PLAIN CB |
| AL00354 | BS4-BSM4 | 13/8Z6 CB |
| AL00355 | BS4-BSM4 | 13/4Z6 CB |
| AL00359 | BS4-BSM4 | 13/4Z20 CB |
| AL00372 | BS4-BSM4 | 13/8Z21 CB |
| AL00373 | BSD3 FRICTION O/RUN | 13/4Z20 CB |
| AL00375 | BSD3 FRICTION O/RUN | 13/8Z6 CB |
| AL00376 | BSD3 FRICTION O/RUN | 13/4Z6 CB |
| AL00377 | BS5 – 6 PLATE | 13/4Z20 CB |
| AL00378 | BS5 – 6 PLATE | 13/4Z6 CB |

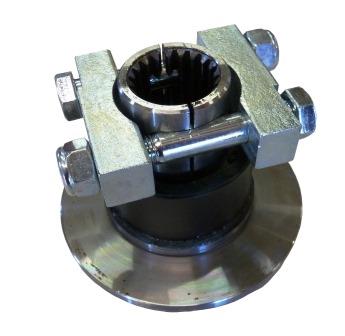

AL00373 – 13/4Z20 Friction Over Run hub. Shown below.

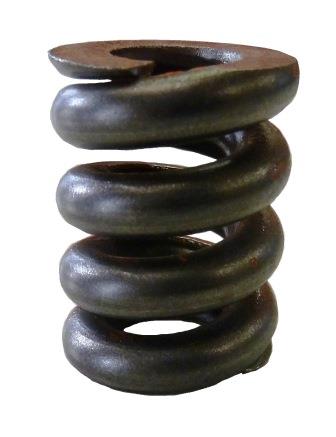

| Clutch Springs | |
| Part No | Fits |
| AL00350 | All friction clutches |
| Front Flange Plates | ||
| Part No | Description | Suits |
| AL00367 | 13/8Z6 SHAFT FLANGE | BSM2 & BSM4 |
| AL00368 | 13/4Z20 SHAFT FLANGE | BSM2 & BSM4 |
| AL00616 | T6 YOKE FLANGE | BS2 |
| AL00341 | T8 YOKE FLANGE | BS4 |
| Friction Clutch Parts – Other | ||
| Part No | Description | Fits |
| AL00628 | Rear pressure plate | BS2 – BSM2 BS4 – BSM4 |
| AL00369 | Inner plates. 4mm | BS2 – BSM2 BS4 – BSM4 |
| AL00370 | Disc drive plate. Hex bore | BS4 – BSM4 |
| AL01197 | Centre locating ring. | BS2 – BSM2 BS4 – BSM4 |
| Overrun Clutch Parts |
||
| Part No |
Description | Fits |
| AL00347 |
Repair Kit 4 springs – 4 drive keys |
BSD1-3 |
| AL02603 | Bridge Clamp Plate |
BSD1-2 |
| AL02604 | Bridge Clamp Plate | BSD – 3 |
