SERIES 6 PTO – 64/100 HP

Notes:

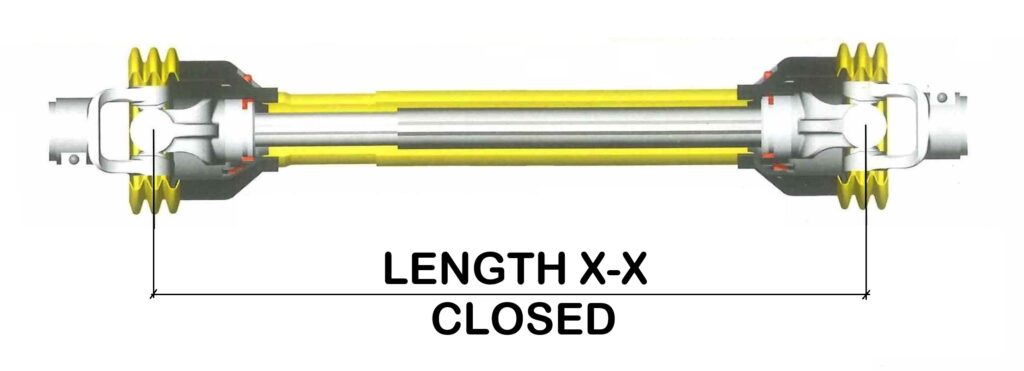

– Lengths shown below are measured from bearing centre to bearing centre.

– Shaft extension – Shafts should be installed with a 50% (half) tube overlap under normal conditions. A minimum overlap of one third is recommended under all conditions. Extensions above this will result in premature shaft wear / failure.

Common terms:

– QR = Quick release. Refers to yoke or clutch hub style.

– CB = clamp bolt. Refers to yoke or clutch hub style.

– Plain = Non splined bore. Normally supplied with keyway and grub screws for attachment.

– Plain CB = as per plain above with the addition of a clamp bolt for attachment.

– 13/8Z6 = Standard 540 RPM 13/8″ diameter 6 spline.

– 13/8Z21 = Standard 1000 RPM 13/8″ diameter 21 spline.

– 13/4Z20 = Standard 1000 RPM 13/4″ diameter 20 spline.

– 13/4Z6 = Standard 1000 RPM 13/4″ diameter 6 spline.
