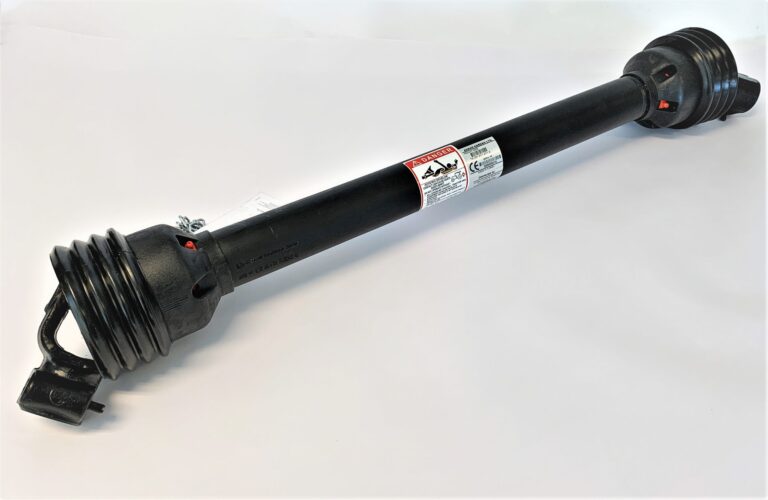

SERIES 4 PTO – 35/56 HP
Aline Trading Pty Ltd stock a diverse range of complete PTO shafts and components.
Listed below are some of the common versions we supply. Other combinations can be assembled to order.
We welcome orders from one off specials to large volume OEM requirements.
Please contact us today to discuss your requirements.
Notes:

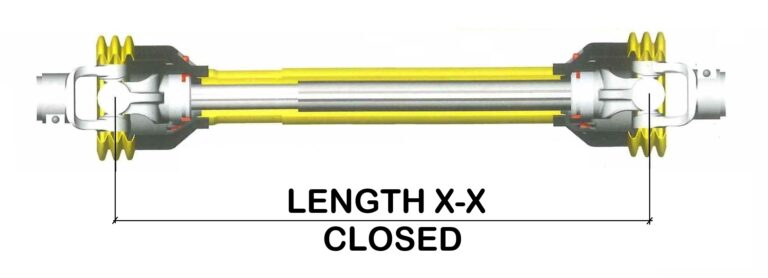

– Lengths shown below are measured from bearing centre to bearing centre.
– Shaft extension – Shafts should be installed with a 50% (half) tube overlap under normal conditions. A minimum overlap of one third is recommended under all conditions. Extensions above this will result in premature shaft wear / failure.
Common terms:
– QR = Quick release. Refers to yoke or clutch hub style.
– CB = clamp bolt. Refers to yoke or clutch hub style.
– Plain = Non splined bore. Normally supplied with keyway and grub screws for attachment.
– Plain CB = as per plain above with the addition of a clamp bolt for attachment.
– 13/8Z6 = Standard 540 RPM 13/8″ diameter 6 spline.
– 13/8Z21 = Standard 1000 RPM 13/8″ diameter 21 spline.
– 13/4Z20 = Standard 1000 RPM 13/4″ diameter 20 spline.
– 13/4Z6 = Standard 1000 RPM 13/4″ diameter 6 spline.
PRODUCT SPECS
| SPECIFICATIONS | |||||||
| BEARING | 540 – RPM | 1000 – RPM | MAX DYNAMIC TORQUE | ||||
| POWER | TORQUE | POWER | TORQUE | ||||
| KW | HP | N.m | KW | HP | N.m | ||
| 27 x 74.6 | 26 | 35 | 460 | 40 | 56 | 380 | 780 |
| Values related to 5 degree joint angles, 1000hrs life. | |||||||
| Standard Series 4 Shafts | |||
| Part No | Length X-X | End 1 | End 2 |
| AL02112 | 710 | 25mm PLAIN | 25mm PLAIN |
| AL02120 | 810 | 13/8Z6 QR | 13/8Z6 QR |
| AL02123 | 760 | 13/8Z6 QR | 11/2″ PLAIN CB |
| AL02126 | 760 | 13/8Z6 QR | 13/8″ PLAIN CB |
| AL02139 | 960 | 13/8Z6 QR | 13/8Z6 QR |
| AL02140 | 960 | 13/8Z6 QR | 35mm PLAIN CB |
| AL02151 | 1160 | 13/8Z6 QR | 13/8Z6 QR |
| AL02154 | 1160 | 13/8Z6 QR | 11/2 PLAIN |
| AL02155 | 1160 | 13/8Z6 QR | 13/8 PLAIN CB |
| AL02171 | 1660 | 13/8Z6 QR | 13/8Z6 QR |
| AL02173 | 1660 | 13/8Z6 QR | 11/4 PLAIN CB |
| Series 4 shafts with clutch | ||||
| Part No |
Length X-X |
Yoke End |
Clutch End |
Clutch |
| AL02114 | 710mm | 13/8Z6 QR |
13/8Z6 CB |
PK4-780Nm SHEAR BOLT |
| AL02115 | 710 | 13/8Z6 QR |
13/8Z6 QR |
SD1-1600Nm O/RUN |
| AL02118 | 760 | 13/8Z6 QR |
13/8Z6 CB |
BS1-900Nm FRICTION |
| AL02119 | 760 | 13/8Z6 QR |
11/4 PLAIN CB |
BS1-900Nm FRICTION |
| AL02127 | 760 | 13/8Z21 QR |
13/8Z6 CB |
BS1-900Nm FRICTION |
| AL02137 | 960 | 13/8Z6 QR |
13/8Z6 CB |
BS1-900Nm FRICTION |
| AL02148 | 1110 | 13/8Z6 QR |
13/8Z6 QR |
YK4-1000Nm RADIAL PIN |
| AL02149 | 1160 | 13/8Z6 QR |
13/8Z6 CB |
BS1-900Nm FRICTION |
| AL02169 | 1660 | 13/8Z6 QR | 13/8Z6 CB |
BS1-900Nm FRICTION |
| AL02170 | 1660 | 13/8Z6 QR | 11/4 PLAIN CB |
BS1-900Nm FRICTION |
