POWER RATINGS AND DIMENSIONS
Please refer to the data below for shaft sizes and capacities.

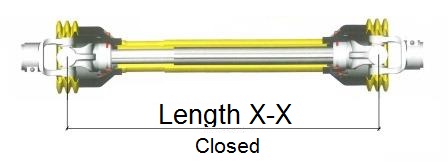

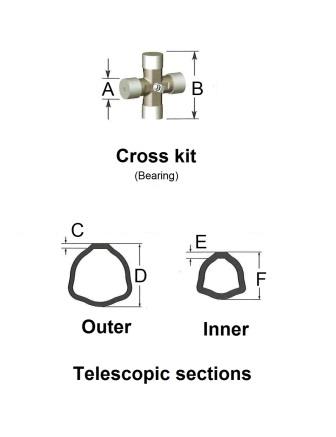

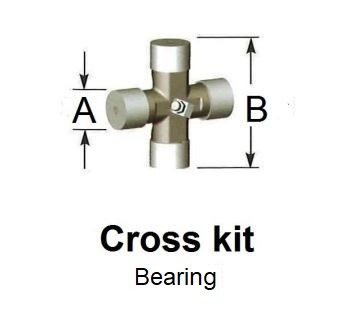

When replacing an old shaft please check the diameter and width of the cross kit (dim A & B) to ensure you are selecting a shaft of equivalent rating.
PRODUCT SPECS
| SERIES | 540 – RPM | 1000 – RPM | MAX DYNAMIC TORQUE | ||||
| POWER | TORQUE | POWER | TORQUE | ||||
| KW | HP | N.m | KW | HP | N.m | ||
| 1 | 12 | 16 | 210 | 18 | 25 | 172 | 320 |
| 2 | 15 | 21 | 270 | 23 | 31 | 220 | 450 |
| 4 | 26 | 35 | 460 | 40 | 56 | 380 | 780 |
| 6 | 47 | 64 | 830 | 74 | 100 | 710 | 1450 |
| 8 | 70 | 95 | 1240 | 110 | 150 | 1050 | 2250 |
| 9 | 88 | 120 | 1560 | 140 | 190 | 1340 | 2900 |
| Values related to 5 degree joint angles, 1000hrs life. | |||||||

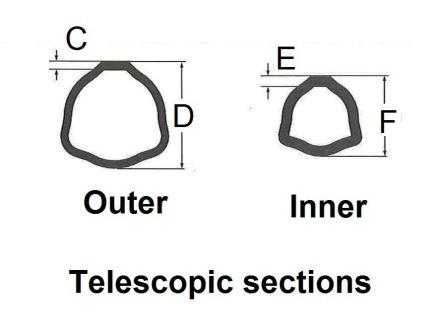

| SERIES | DIMENSION | |||||
| A | B | C | D | E | F | |
| 1 | 22 | 54 | 3.2 | 36 | 4 | 29 |
| 2 | 23.8 | 61.3 | 3.2 | 36 | 4 | 29 |
| 4 | 27 | 74.6 | 3.4 | 43.5 | 4.5 | 36 |
| 6 | 30.2 | 92 | 4 | 54 | 4 | 44.5 |
| 8 | 34.9 | 106.5 | 4 | 54 | 5.5 | 44.5 |
| 9 | 41 | 108.4 | SEE DETAILS BELOW |
|||
PRODUCT PHOTOS

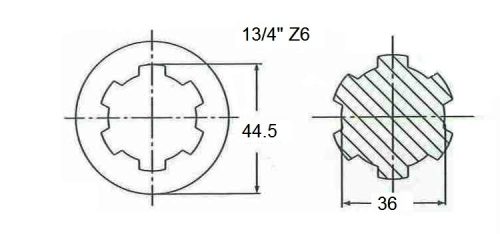

Below drawing shows splined M series shaft. Series 9 PTO shafts only.
