ADAPTORS

Aline Trading P/L present a range of splined and plain bore adaptors suitable for many driveline applications.

PRODUCT SPECS

SPLINED ADAPTORS
PART No MALE FEMALE LENGTH NOTE
AL00303 13/8Z6 13/8 Z6 168 H/Duty Clamp Bolt. Two bolts with clamp plates
AL00304 13/8Z6 13/8 Z21 168 H/Duty Clamp Bolt. Two bolts with clamp plates
 AL00306 13/8Z6  13/4Z20   168 H/Duty Clamp Bolt. Two bolts with clamp plates
AL00305 13/4Z20 13/8Z21 168 H/Duty Clamp Bolt. Two bolts with clamp plates.
Standard length for tractor PTO use.
AL00296 13/4Z20
Long spline
13/8Z21 188 H/Duty Clamp Bolt. Two bolts with clamp plates.
Special for use with AL00630 gearbox

AL00300 13/8Z6 25mm Plain Bore
149 8mm Keyway
2 x M8 tapped holes
AL00301 13/8Z6 30 mm Plain Bore
149 8mm Keyway
2 x M8 tapped holes
AL00302 13/8Z6 25mm Plain Bore
65mm O.D
168 Plain bore. Machine to suit your needs.
2 x M8 tapped holes.
AL00294  13/8Z6  35mm Plain Bore  150 10mm Keyway
2 x M8 tapped holes

Notes:

AL00300 & AL00301 have a plain bore female end with keyway and are suitable for use with our A10 & A8 gearboxes.

AL00296 is specially designed to work with our AL00630 gearbox. 20mm longer spline.

AL00302 is supplied as a 25mm plain bore & 65mm O.D body with 2x M8 tapped holes for grub screws. You can  machine as needed to suit your specialty needs.

PRODUCT PHOTOS

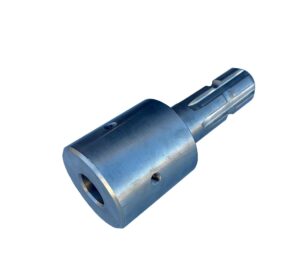

AL00302 – 13/8Z6 male – 25 mm Plain bore. Suitable for machining out to larger diameters.

Body diameter = 65mm

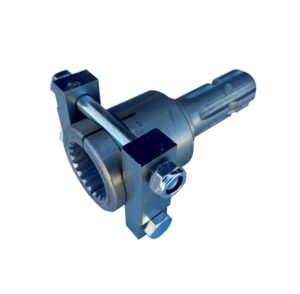

AL00306 – 13/4Z20 female – 13/8Z6 male.

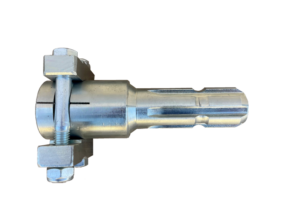

AL00303 – 13/8Z6 male – 13/8Z6 female

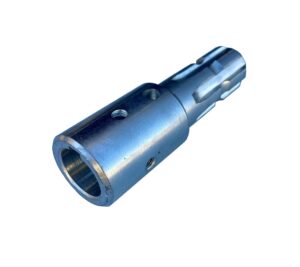

AL00301 – 13/8Z6 male – 30mm plain bore female with 8mm keyway
