AL02052 SIMOL TOP WIND TUBE MOUNT 1300 Kg

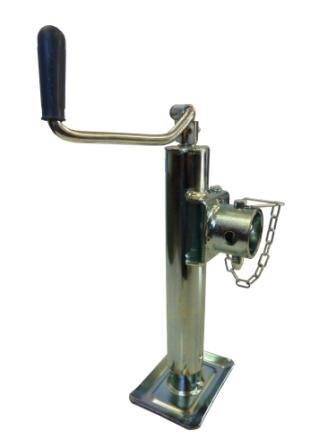

The AL02052 is an Italian made SIMOL top wind jack with tube mount.
Supplied with weld on tube mount. Not shown.
PRODUCT SPECS
| Part Number | AL02052 |
| Model | ST3104 |
| Static load rating |
1300 Kg |
| Screw stroke. +_ 10mm |
250mm |
| Tube size diameter x shape |
57mm round |
| Unit weight |
5.4 Kg |
| Finish | Zinc plated |
| Mount | Tube |

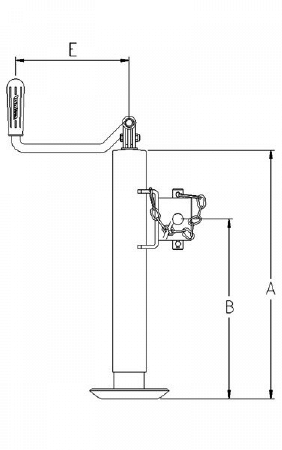

| A | 375mm |
| B | 265mm |
| E | 168mm |
PRODUCT PHOTOS
