The AL01523 is an Italian made SIMOL top wind jack with slide clamp mount.
This simple yet very strong design makes for a reliable performer.
Capacity = 1200 Kg
Stroke = 300mm
PRODUCT SPECS
| Part Number | AL01523 |
| Model | PE600 |
| Static load rating |
1200 Kg |
| Screw stroke. +_ 10mm |
300mm |
| Tube size diameter x shape |
80mm square |
| Unit weight |
16.6 Kg |
| Finish | Prime paint |
| Mount | Slide clamp |

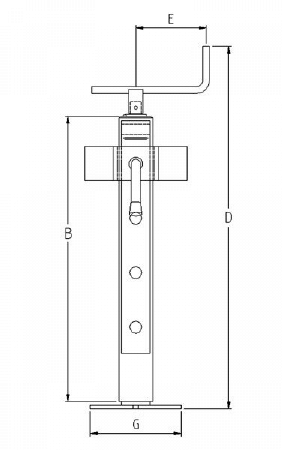

| B | 500mm |
| D | 670mm |
| E | 185mm |
| G | 220mm |
