AL01380 SIMOL SIDE WIND DROP LEG 4500 Kg
The AL01380 is a heavy duty 4500 kg rated jack with drop leg.
This premium quality product is suited to large agricultural or industrial trailers.
Features include:
– 2 position handle.
– Drop leg section for fast height adjustment.
– Galvanised foot for corrosion resistance.
– Lifting handle on foot.
PRODUCT SPECS
| Part Number | AL01380 |
| Model | K450 |
| Static load rating |
4500 Kg |
| Screw stroke. +_ 10mm |
280mm + 300mm drop |
| Tube size diameter x shape |
110mm square |
| Unit weight |
32 Kg |
| Finish | Prime paint / galvanized |
| Mount | None |

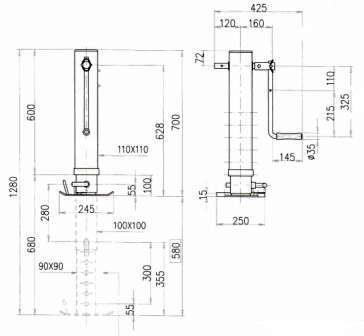

| B = closed height |
700 mm |
| G = base plate |
250mm sq |
| H = drop section |
300mm |

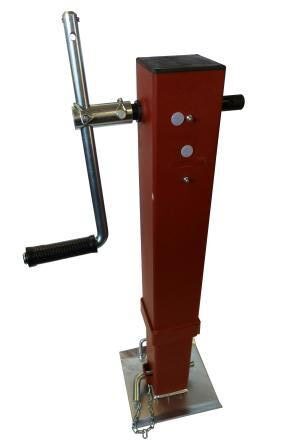

PRODUCT PHOTOS
