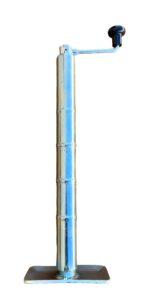

AL01361 TOP WIND CLAMP MOUNT 650 Kg
The AL01361 is a top wind jack with slide clamp mount giving 4 x mounting positions.
The mount is the same as the standard JW1 jockey wheel mount.
PRODUCT SPECS
| Part Number | AL01361 |
| Model | AS20 |
| Static load rating | 650 Kg |
| Screw stroke. +_ 10mm | 200mm |
| Tube size diameter x shape | 48mm round |
| Unit weight | 5.5 Kg |
| Finish | Zinc plated |
| Mount | Clamp. Adjustable 4 positions. |
| Height closed O/A. | 540mm |
| Mounting positions | 4 |
