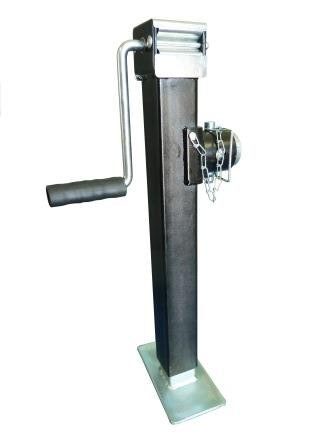

AL01124 SIDE WIND TUBE MOUNT 1590 Kg
The AL01124 is a side wind tube mount landing leg with painted square body.
Suitable for agricultural and industrial use.
PRODUCT SPECS
| Part Number | AL01124 |
| Model | DT3500A |
| Static load rating |
1590 Kg |
| Screw stroke. +_ 10mm |
390mm |

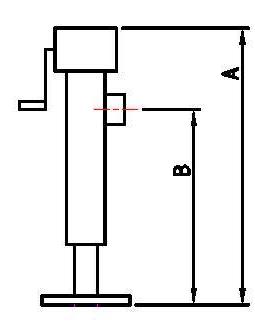

| Dimension A closed | 550mm |
| Dimension B closed | 390mm |
| Tube size diameter x shape |
57mm SQUARE |
| Unit weight |
7.9 Kg |
| Finish | Black paint |
| Mount | Tube |
PRODUCT PHOTOS
