AL01116 SIDE WIND DROP LEG 3180 Kg
The AL01116 is a side wind drop leg jack suited to agricultural and industrial equipment.
PRODUCT SPECS
| Part Number | AL01116 |
| Model | DT5903SFZC |
| Static load rating |
3180 Kg |
| Screw stroke. +_ 10mm |
370mm |
| Tube size diameter x shape |
65mm SQ |
| Unit weight |
12.5 Kg |
| Finish | Zinc plated |
| Mount | None |
| Drop leg |
340 mm |

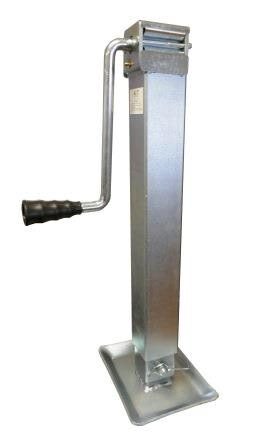

PRODUCT PHOTOS
