AL01111 SIMOL SIDE WIND 6000 Kg
The AL01111 is an Italian made SIMOL side wind jack with top mount tipping connection.
Capacity = 6000 Kg
Stroke = 170mm
PRODUCT SPECS
| Part Number | AL01111 |
| Model | DS510S |
| Static load rating |
6000 kG |
| Screw stroke. +_ 10mm |
170 mm |
| Tube size diameter x shape |
70mm shaped |
| Unit weight |
15.5 Kg |
| Finish | Prime painted |
| Mount | Top mount |

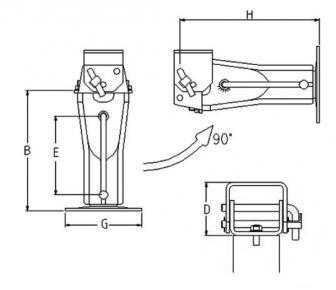

| B | 330mm |
| D | 125mm |
| E | 220mm |
| G | 220mm |
| H | 400mm |
