AL00847 SIDE WIND FLANGE MOUNT 1300 Kg

The AL00847 is a swivel mount side wind jack with a 250mm stroke.

Suitable for agricultural and industrial equipment.

PRODUCT SPECS

Part NumberAL00847
ModelASF10
Static load rating1300 Kg
Screw stroke. +_ 10mm250 mm
Tube size diameter x shape57 mm
Unit weight6.3 kg
FinishZinc plated
MountSwivel plate

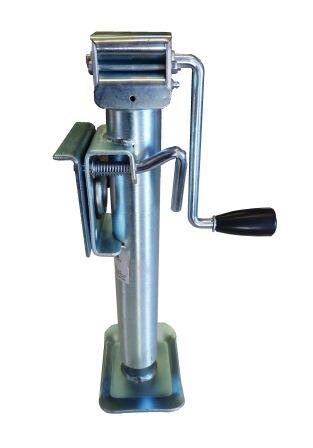

PRODUCT PHOTOS
