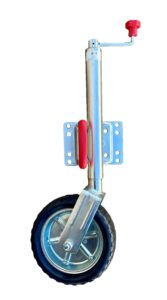

AL02445 JOCKEY WHEEL 455kg

The AL02445 jockey wheel is ideal for use on trailers requiring a wider tyre for floatation.

PRODUCT SPECS

Part numberAL02445
ModelJW 10
Wheel size Diameter x Width250mm x 90mm solid rubber tyre on steel wheel.
Outer tube size and shape48mm round
Static load rating in Kg910 kg
Screw stroke in mm +- 10mm240 mm
Screw shaftGrade 8.8
Unit Weight10.3 Kg
Winding methodTop wind
MountSwivel –  Bolt or weld on
FinishZinc plated.
Ground to centre of mount closed.390mm
OPTIONAL U BOLTS TO SUIT
 75mm drawbarAL01350
 100mm drawbarAL01351
