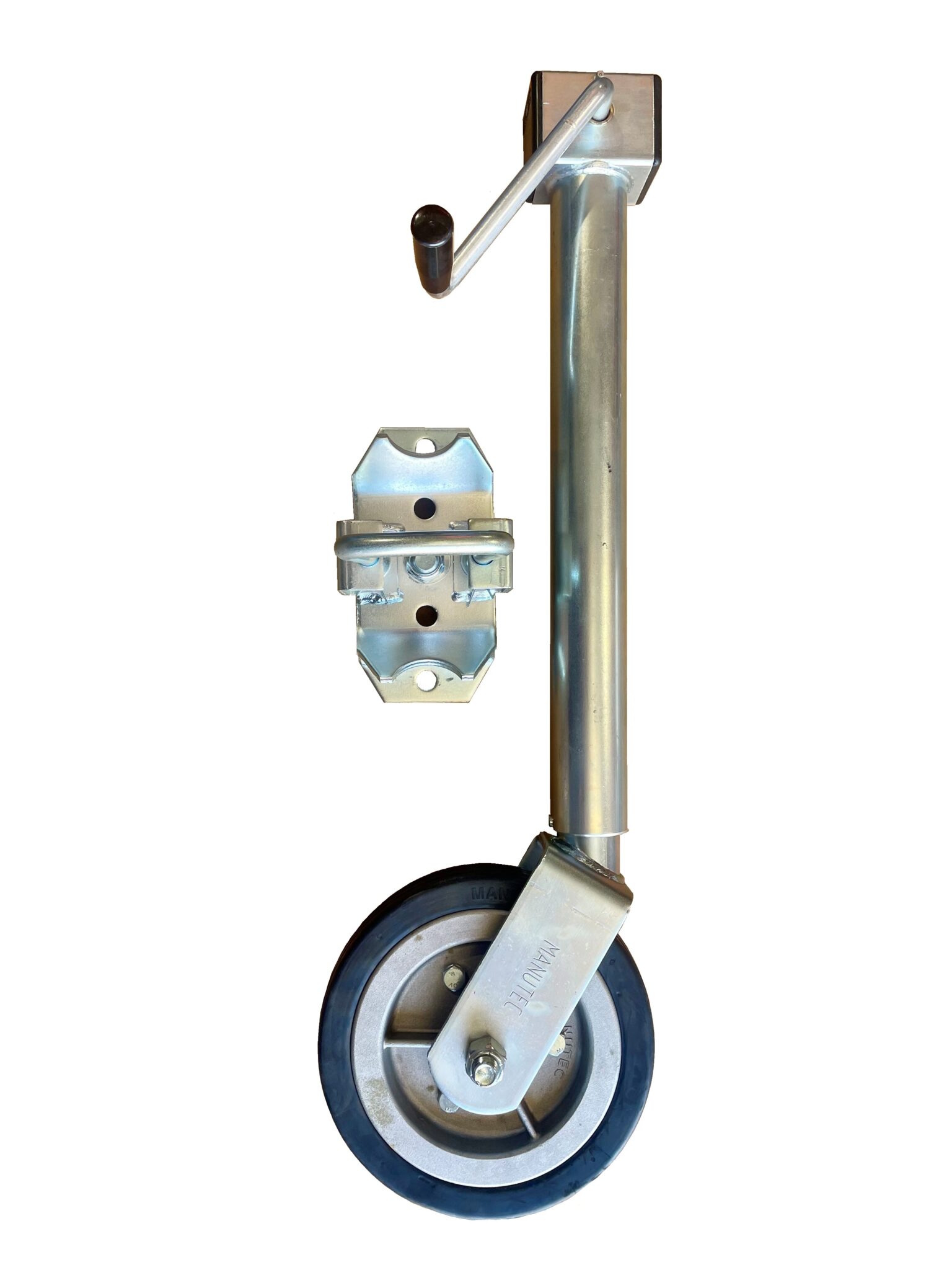

AL01358 JOCKEY WHEEL 1250kg

The AL01358 is an extra heavy duty side wind, swivel jockey wheel.

It is supplied with a heavy duty pin locking swivel bracket which is supplied loose.

PRODUCT SPECS

Part numberAL01358
ModelJWSW-8
Tyre size
250mm x 50mm –  Alloy centre
Static load rating in Kg1250 Kg
O/A height closed.860mm
Screw stroke in mm +- 10mm225mm
Body Diameter60mm
Unit Weight18 Kg
Winding methodSide wind
MountSwivel – Bracket supplied loose
FinishZinc plated
