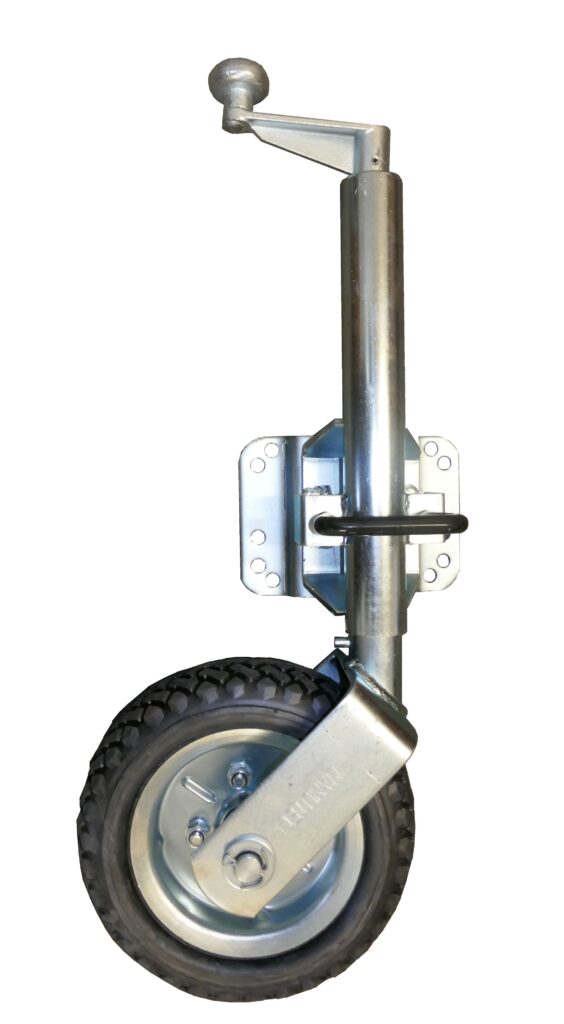

AL01352 JOCKEY WHEEL 1000kg
The AL01352 premium jockey wheel offers increased capacity with a heavy duty locking pin swivel bracket, heavy duty winding handle and thrust bearing and a 4.10/3.50×4 (10″) “Pneumatic Look” solid cushion tyre with a zinc plated steel centre and bronze bush bore.
PRODUCT SPECS
| Part number | AL01352 |
| Model | JW11UBHD |
| Tyre Size | 4.10/3.50×4 – 10 inch |
| Static load rating in Kg | 1000 Kg |
| Screw stroke in mm +- 10mm | 225 mm |
| Ground to centre of mount when closed | 360mm |
| Unit Weight | 10.8 Kg |
| Winding method | Top wind |
| Mount | Swivel – Heavy Duty. Bolt on or weld |
| Finish | Zinc plated |
| OPTIONAL U BOLTS TO SUIT | |
| 75mm drawbar | AL01350 |
| 100mm drawbar | AL01351 |
