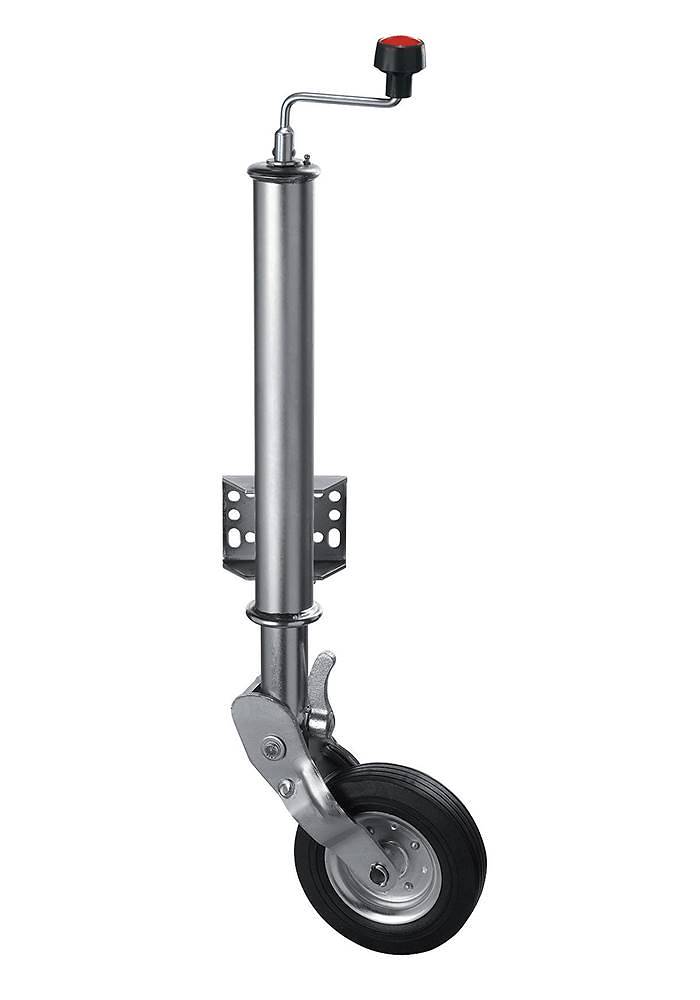

AL00714 JOCKEY WHEEL 250kg AUTO FOLD

The AL000714 is a quality Italian made product, designed for agricultural and automotive applications. This model features a steel wheel with rubber tyre and automatic lift and lock system.





PRODUCT SPECS

Part numberAL00714
ModelAC296 K
Wheel size Diameter x Width200mm x 60mm rubber on steel
Outer tube size and shape60 mm round
Static load rating in Kg250 Kg
Screw stroke in mm +- 10mm185 mm

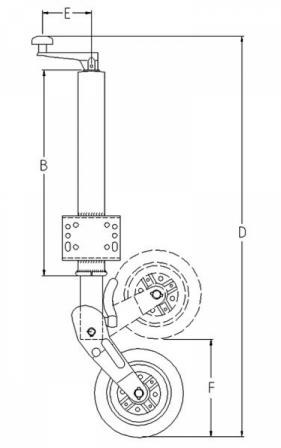

B
460 mm
D860 mm
E
110 mm
F270 mm
Unit Weight9 Kg
Winding methodTop wind
