AL01315 HYDRAULIC JACK
The AL01315 is a double acting hydraulic jack with single block valve and is suitable for a wide range of agricultural and industrial applications.
Other features include:
– Rubber cushion foot plate
– Mounting plate, supplied loose for optimal positioning
PRODUCT SPECS
| Part Number | AL01315 |
| Model | H1140PF1 |
| Static load rating @ 100 bar |
3800Kg |
| Static load rating @ 150 bar | 5700 Kg |
| Static load rating @ 200 bar | 7600 Kg |
| Oil capacity | 1.55 lt |
| Stroke. +_ 10mm |
400mm |
| Hose ports | 3/8″ Gas (BSPP) |
| Tube size diameter x shape |
110mm square |
| Unit weight |
39 Kg |
| Finish | Prime paint |
| Mount | Loose plate 10 hole |

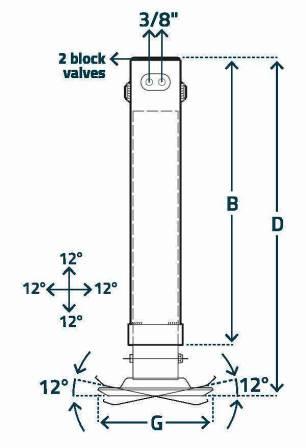

| B | 650mm |
| D = o/a closed height |
760mm |
| E = base plate |
250mm SQ |
PRODUCT PHOTOS

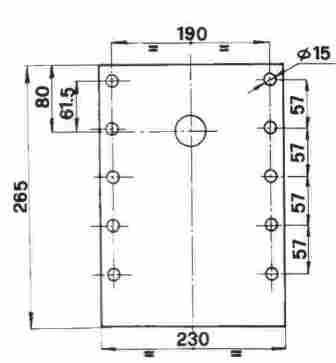

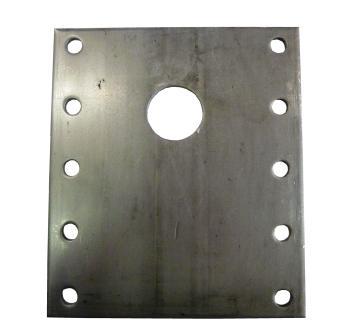

Mounting plate
