AL01314 HYDRAULIC JACK

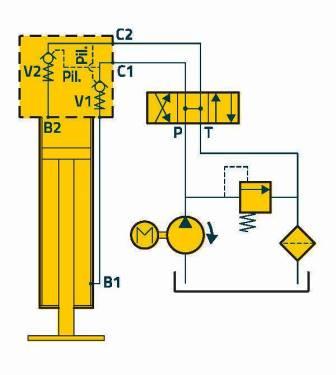

The AL01314 is a double acting hydraulic jack with two block valves and is suitable for a wide range of agricultural and industrial applications.
PRODUCT SPECS
| Part Number | AL01314 |
| Model | H1052/1 |
| Static load rating @ 100 bar |
2800Kg |
| Static load rating @ 150 bar | 4200 Kg |
| Static load rating @ 200 bar | 5600 Kg |
| Stroke. +_ 10mm |
500mm |
| Hose ports | 3/8″ Gas (BSPP) |
| Oil capacity | 1.45 lt |
| Tube size diameter x shape |
100mm square |
| Unit weight |
32.5 |
| Finish | Prime paint |
| Mount | None |

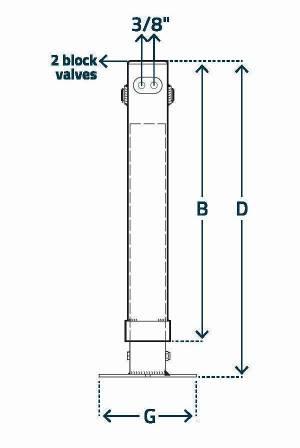

| B = Body length. | 730mm |
| D = O/A Closed height | 820mm |
| G = Base plate diameter | 280mm |
