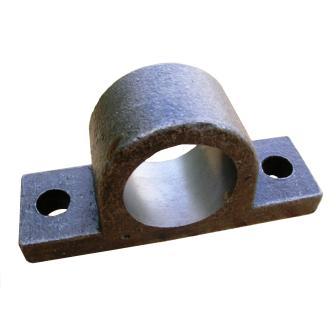

Bolt on cylinder mounts

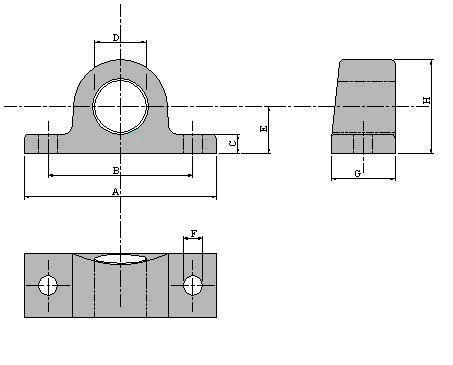

PRODUCT SPECS
| Part No | A | B | C | D | E | F | G | H | Kg |
| AL01827 | 130 | 95 | 12 | 35.5 | 30 | 13 | 40 | 56 | 0.9 |
| AL01852 | 140 | 108 | 15 | 40.5 | 33 | 15 | 45 | 66 | 1.2 |
| AL01860 | 140 | 108 | 15 | 45.5 | 33 | 15 | 45 | 66 | 1.2 |
| Part No | A | B | C | D | E | F | G | H | Kg |
| AL01827 | 130 | 95 | 12 | 35.5 | 30 | 13 | 40 | 56 | 0.9 |
| AL01852 | 140 | 108 | 15 | 40.5 | 33 | 15 | 45 | 66 | 1.2 |
| AL01860 | 140 | 108 | 15 | 45.5 | 33 | 15 | 45 | 66 | 1.2 |
