A3921
The A3921 gearbox is a fully imperial gearbox. Its compact size and strong cast iron housing make it an ideal replacement for imported grain augers and other equipment.
PRODUCT SPECS
| Part No | Model | Input | Output | ||||||

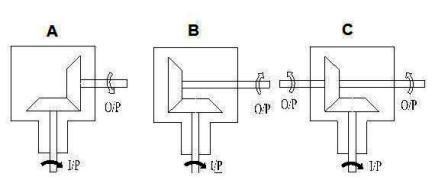

| Ratio | RPM | HP | KW | NM | NM | RPM | Rotation | ||
| AL01717 | A3921 | 1:1 | 540 | 20 | 15 | 265 | 265 | 540 | C |
| 1000 | 30 | 22.5 | 215 | 215 | 1000 | ||||
| Unit weight |
10.6 kg |
| Shafts |
3 x 1″ diameter with 1/4″ keyways |
| Mounting holes |
4 on 4.25″ SQ pattern. |
| Lubricant | SAE 90 gear oil. .4lt aprox. |

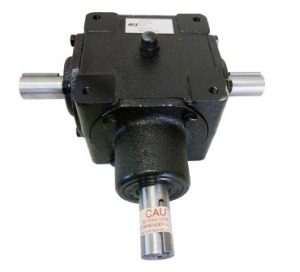

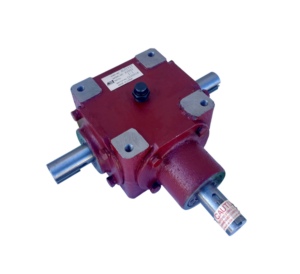

PRODUCT PHOTOS

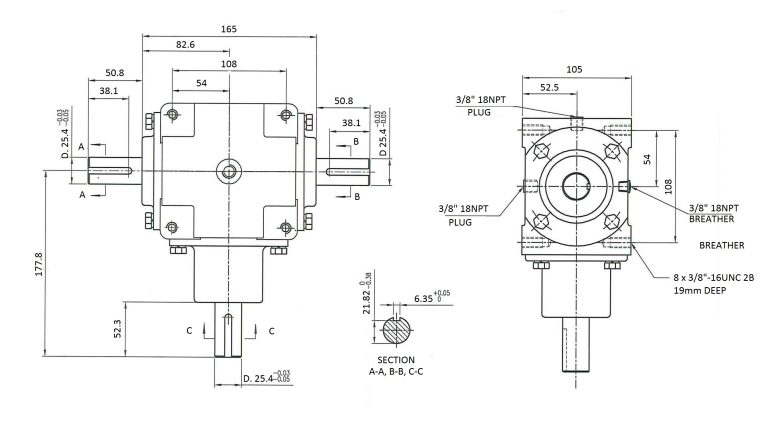

Click on the drawing below to enlarge.
