A3922FR
The A3922-FR gearbox is similar to the A3921 gearbox but with the added advantage of a forward / reverse function. Its compact size and strong cast iron housing makes it an ideal choice for use on grain augers.
Note: Can be used as a replacement gearbox for some imported augers.
PRODUCT SPECS
| Part No | Model | Input | Output | ||||||
| Ratio | R.P.M | HP | KW | NM | NM | RPM | Rotation | ||
| AL01718 | A3922FR | 1:1 | 540 | 20 | 15 | 265 | 265 | 540 | Variable |
| 1000 | 30 | 22.5 | 215 | 215 | 1000 | ||||
| Unit weight | 12.4 kg |
| Shafts | 3 x 1″ diameter with 1/4″ keyways |
| Mounting holes | 4 on 4.25″ SQ pattern. |
| Lubricant | SAE 90 gear oil. .4lt aprox. |

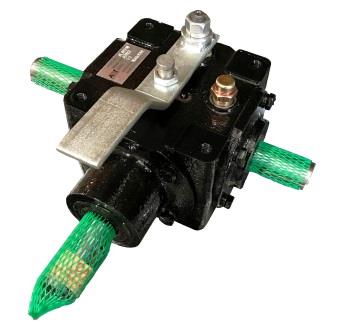

PRODUCT PHOTOS

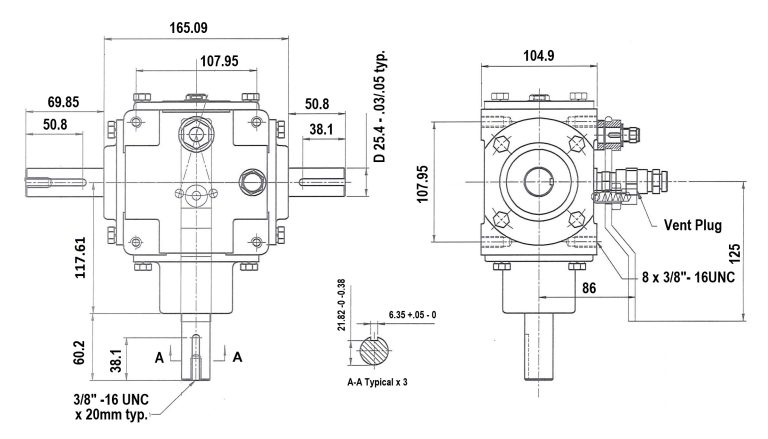

Click on drawing to enlarge to full screen.
