BALL JOINTS
Aline Trading P/L present a range of quality Italian made weld on ball joints. Suitable for use as linkage assemblies, tow eyes and pivot joints on a wide range of agricultural and industrial machinery.
Available in 3 styles and a range of sizes to suit your needs.
Please contact us today with your requirements.
PRODUCT SPECS & PHOTOS

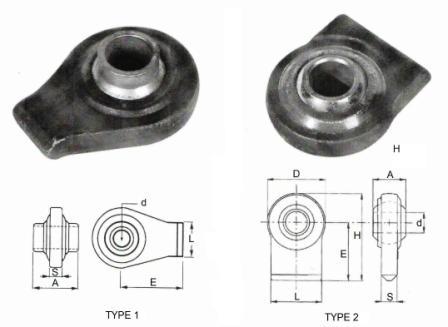

| Part No | Diameter (mm) | L | D | E | A | S | Type |
| AL01656 | 16.0 | 33 | 48 | 59 | 20 | 13 | 1 |
| AL00813 | 19.5 | 30 | 59 | 50 | 44 | 14 | 1 |
| AL01657 | 19.3 | 50 | 65 | 45 | 35 | 15 | 2 |
| AL01658 | 22.2 | 60 | 68 | 50 | 35 | 18 | 2 |
| AL00814 | 25.9 | 30 | 68 | 64 | 51 | 16 | 1 |
| AL01659 | 25.4 | 70 | 76 | 50 | 35 | 18 | 2 |
| AL01661 | 28.4 | 70 | 80 | 70 | 45 | 22 | 2 |
| AL01662 | 32.2 | 70 | 95 | 65 | 45 | 22 | 2 |
| AL01663 | 35.3 | 70 | 95 | 65 | 45 | 22 | 2 |
| AL01664 | 38.4 | 80 | 108 | 65 | 45 | 24 | 2 |
| AL01654 | 50.3 | – | 100 | – | 75 | 34 | Round |
| AL00967 | 51.3 | – | 100 | – | 75 | 34 | Round |

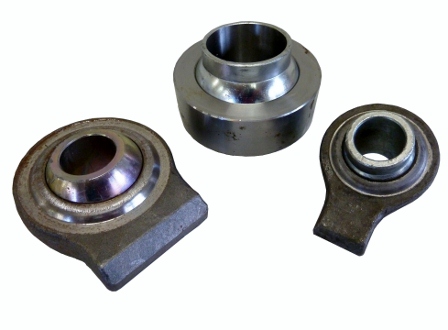

Style from left to right. Type 2, Round, Type1.
