TARP WINDER UNIVERSAL JOINTS
Aline Trading P/L presents a range of tarp winding universal joints for use on truck and agricultural trailers.

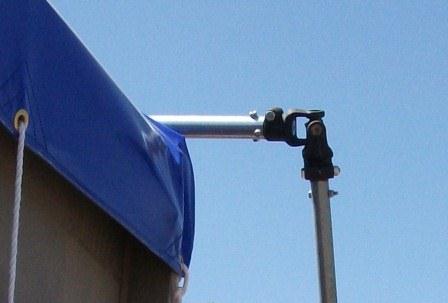

The universal joint connects the winding handle to the roll tarp shaft mounted on the side of the trailer body allowing the tarp to be wound over the load.
There are 6 standard versions offered by Aline Trading. Others sizes and end combinations assembled to order.
We also supply 13/8″ Z21 splined shaft in 200mm lengths. Part Number AL01897. These can be used to connect the universal joint to the handle or roll shaft. Details below.
PRODUCT SPECS & PHOTOS
| Part No | Bearing size | Yoke 1 | Yoke 2 |
| AL00938 | T1 22 x 54 | 13/8″ Z21 non int | 13/8″ Z21 non int |
| AL00939 | T1 22 x 54 | 1″ plain | 1 3/8″ Z21 |
| AL00940 | T1 22 x 54 | 1″ plain | 25mm plain |
| AL00941 | T1 22 x 54 | 1″ plain | 1″ plain |
| AL00942 | T1 22 x 54 | 13/8″ Z21 int | 13/8″ Z21int |
| AL02756 | T1 22 x 54 | 13/8″ Z21QR | 13/8″ Z21QR |

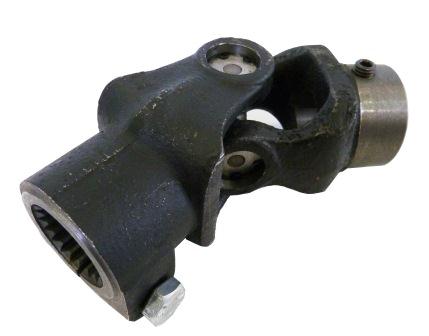

AL00939 pictured below.

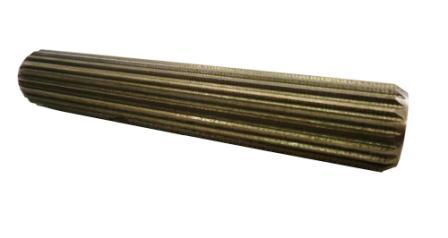

AL01897 13/8″ splined shaft x 200mm.

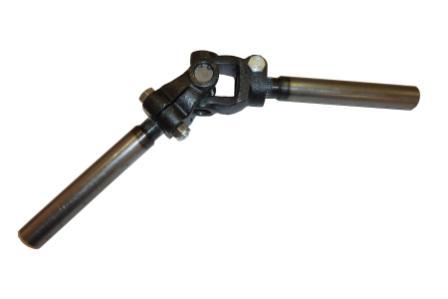

The AL01338 is a small universal joint with shafts and is suitable for use on roll tarps and other applications. The shafts are connected to the yokes using a fine spline that allows for adjustment and clamp bolt.
| Part Number AL01338 | |
| Shaft diameter | 21mm |
| Overall length | 357mm |
| Bearing diameter | 16mm |
| Width across yokes | 43mm |
| Spare cross bearing | P/No AL01339 |
