MUD GUARDS / MUD FLAPS
Aline Trading P/L present a range of mudguards suitable for on-road and off-road trailers.
Made in Australia, our standard guards are “4 fold” and offer a strong and attractive profile.
For compact trailers using 12″ or 13″ wheels we offer the “3 fold” guard as an alternative.
Our mudguards are available in smooth steel or checker plate in a range of sizes suitable for single, tandem or triple axle sets and a variety of wheel sizes.
Standard finish is bare unpainted steel with some made from galvanised sheet. Refer list below.
Other sizes are available galvanized to order. A lead time may apply.
Plastic guards are also available for Marine use. See below.
PRODUCT SPECS & PHOTOS
| Part No | Type | Width | Girth | Tip/Tip | Wheel Fitment | Finish |
| AL01468 | Single | 6″ | 32″ | 19.25″ | 8″ | Smooth |
| AL01465 | Single 3F | 7″ | 38.5″ | 26.5″ | 12″/ 13″ | Gal |
| AL01464 | Single | 8″ | 41″ | 27.1″ | 12″ / 13″ | Smooth |
| AL00060 | Single | 9″ | 49″ | 33.5″ | 14″ | Smooth |
| AL01474 | Single | 9″ | 49″ | 33.5″ | 14″ | Checker |
| AL01835 | Single | 9″ | 49″ | 33.5″ | 14″ | Gal |
| AL01469 | Single | 11″ | 49″ | 33.5″ | 14″ | Smooth |
| AL01470 | Single | 11″ | 63″ | 38.25″ | 16″ | Smooth |
| AL01475 | Single | 11″ | 63″ | 38.25″ | 16″ | Checker |
| AL01462 | Single | 12″ | 63″ | 38.25″ | 16″ | Smooth |
| AL01466 | Single | 12″ | 63″ | 38.25″ | 16″ | Checker |
| AL01471 | Tandem Slipper | 9″ | 84″ | 61.5″ | 14″ | Smooth |
| AL03083 | Tandem Slipper | 9″ | 84″ | 61.5″ | 14″ | Checker |
| AL01844 | Tandem Slipper | 9″ | 84″ | 61.5″ | 14″ | Gal |
| AL01476 | Tandem Slipper | 10″ | 84″ | 61.5″ | 14″ | Smooth |
| AL01478 | Tandem Slipper | 11″ | 84″ | 61.5″ | 14″ | Checker |
| AL01486 | Tandem Slipper | 11″ | 84″ | 61.5″ | 14″ | Smooth |
| AL01479 | Tandem Rocker | 9″ | 91″ | 68.5″ | 14″ | Checker |
| AL03308 | Tandem Rocker | 9″ | 91″ | 68.5″ | 14″ | Smooth |
| AL01481 | Tandem Rocker | 10″ | 91″ | 68.5″ | 14″ | Smooth |
| AL01488 | Tandem Rocker | 10″ | 91″ | 68.5″ | 14″ | Checker |
| AL00037 | Tandem Rocker | 11″ | 91″ | 68.5″ | 14″ | Smooth |
| AL01477 | Tandem R/Rocker | 9″ | 96″ | 73.25″ | 14″ | Smooth |
| AL01463 | Tandem R/Rocker | 10″ | 96″ | 73.25″ | 16″ | Checker |
| AL01472 | Tandem R/Rocker | 11″ | 96″ | 73.25″ | 16″ | Smooth |
| AL01473 | Tandem R/Rocker | 11″ | 96″ | 73.25″ | 16″ | Checker |
| AL01480 | Tandem R/Rocker | 12″ | 96″ | 73.25 | 16″ | Checker |
| AL03056 | Tri Axle R/Rocker | 9″ | 124″ | 101.25″ | 14″ | Smooth |
| AL01461 | Tri Axle R/Rocker | 11″ | 130″ | 107″ | 16″ | Smooth |

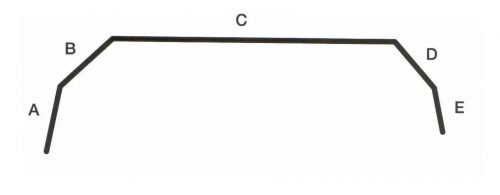

| 6″ Wide 4 Fold single guards | |||||
| A | B | C | D | E | Tip-Tip |
| 130 | 190 | 190 | 190 | 130 | 480 |
| 8″ Wide 4 fold single guards | |||||
| A | B | C | D | E | Tip-Tip |
| 205mm | 215mm | 250mm | 180mm | 190mm | 690mm |
| 9″ – 12″ wide 4 fold single guards | |||||
| A | B | C | D | E | Tip-Tip |
| 270mm | 210mm | 395mm | 215mm | 155mm | 850mm |
| 7″ Wide 3 fold single guards | ||||
| A | B | C | D | Tip-Tip |
| 160mm | 210mm | 260mm | 300mm | 673mm |
| 9″-12″ Wide 84″ long 4 fold Tandem guards | |||||
| A | B | C | D | E | Tip-Tip |
| 310mm | 270mm | 1075mm | 260mm | 225mm | 1560mm |
| 9″-12″ Wide 91″ Long 4 fold tandem guards | |||||
| A | B | C | D | E | Tip-Tip |
| 310mm | 270mm | 1255mm | 260mm | 225mm | 1740mm |
| 9″-12″ Wide 96″ Long 4 fold tandem guards | |||||
| A | B | C | D | E | Tip-Tip |
| 310mm | 270mm | 1375mm | 260mm | 225mm | 1860mm |
| 9″ Wide 130″ Long 4 fold tri axle guards | |||||
| A | B | C | D | E | Tip-Tip |
| 310mm | 270mm | 2235mm | 260mm | 225mm | 2720mm |
| Plastic mudguards with step | ||||
| Part No | Size | Length | Width | Height |
| AL00029 | 13″ | 940 | 230 | 300 |
Ideal for marine use.
White stocked. Grey available to order.
| Mudflaps | |||
| Part No | Colour | Width | Length |
| AL01482 | Black | 230 | 250 |
| AL01483 | White | 230 | 250 |
| AL01484 | Black | 280 | 280 |
| AL01485 | White | 280 | 280 |
