LINK BLOCKS & HINGES
Aline Trading P/L presents a range of Link block locks, pins & swing hinges. Designed primarily for use on heavy trailer or truck tailgates.
Link block locks and pins. Made in Italy.
PRODUCT SPECS & PHOTOS

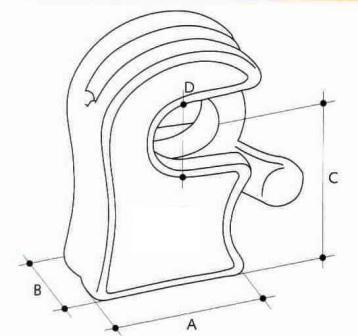

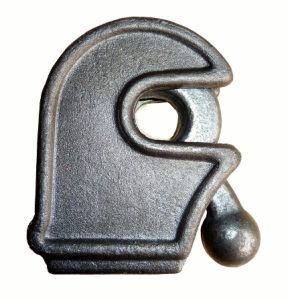

| LINK BLOCK LOCKS | ||||||
| Part No | Description | A | B | C | D | MAX LOAD KG |
| AL02772 | 20mm lock | 67 | 38 | 67 | 21 | 1400 |
| AL00840 | 30mm lock | 80 | 40 | 71 | 31 | 1950 |
| AL02773 | 40mm lock | 95 | 52 | 95 | 40 | 2930 |

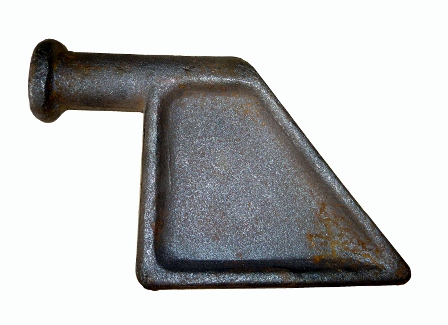

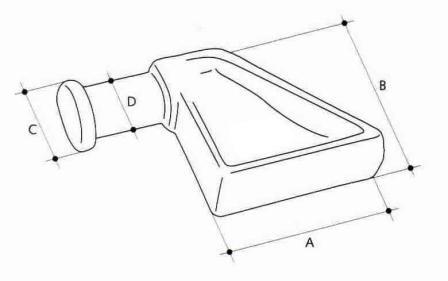

| LINK BLOCK PINS | ||||||
| Part No | Description | A | B | C | D | MAX LOAD KG |
| AL02770 | 20mm pin | 125 | 115 | 32 | 20 | 1150 |
| AL00837 | 30mm pin | 130 | 115 | 41 | 30 | 1700 |
| AL02771 | 40mm pin | 130 | 125 | 52 | 38 | 2400 |

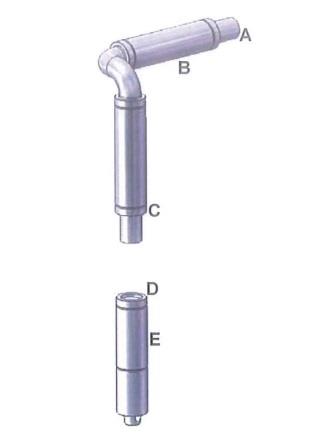

Trailer Tailgate swing hinges for side folding tailgates on tipper trailers and trucks.
Normally used in conjunction with one of the link block locks from above.
| Part No | Description | Bar size | Offset |
| AL00804 | Small | 27mm | 70mm |
| AL00806 | Large | 35mm | 70mm |
