HAND BRAKE LEVERS

Aline Trading P/L has a selection of park brake levers designed for use on trailers and farm machinery.

The lever is used to apply the brakes on either electric or mechanical braked axles when the trailer is in the parked position.

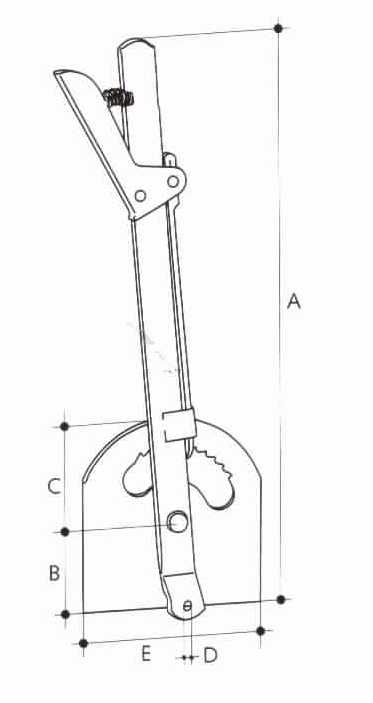

 Steel Park Brake Lever
 Part No
 AL02759
 A  480 mm
B 80 mm
C 85 mm
D 8 mm
E 155 mm

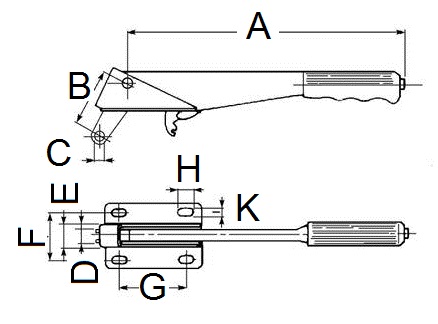

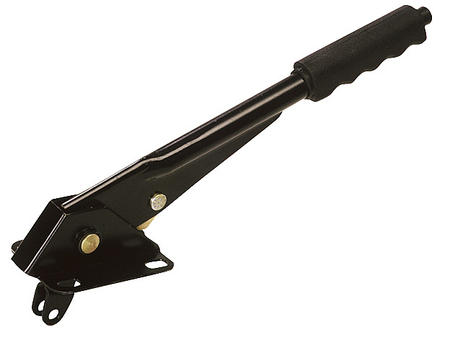

 Soft Grip Park Brake Lever
 Part No
 AL00827
A 296 mm
B 57.2 mm
C 8 mm
D 9 mm
E 20.5 mm
F 49 mm
G 69 mm
H 16.5 mm
K 9 mm
