DROP LOCKS
The drop lock is a very popular choice for applications like Ute trays, trailers, safety covers and more. Their simple and compact design allows for a positive closure at an economical price.

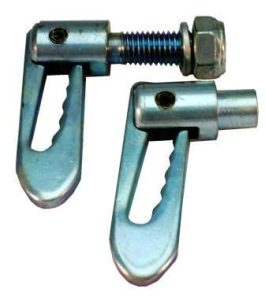

Aline Trading P/L present 7 variations of the drop lock. One weld on and six bolt on units.
The bolt on units are supplied with a spring washer and Nyloc nut.
Part number | Thread / shank length | Body Diameter |
AL00784 | Weld on |
19mm |
AL00811 | M8 X 20 mm |
12mm |
AL00818 | M8 x 20 mm Stainless | 12mm |
AL00785 | M12 X 35mm | 19mm |
AL00793 | M12 X 50mm | 19mm |
AL01877 | M12 X 75mm | 19mm |
