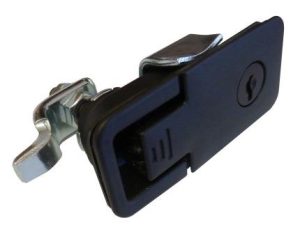

COMPRESSION LATCH LIFT AND TURN

Aline Trading P/L stock this quality American made Lift & Turn Compression Latch for situations that require a stronger more robust closure.

Lift & Turn Compression Latches feature:

Low profile when latched.

Easy grip adjustment.

Intuitive operation

Zinc alloy powder coated black & Zinc plated steel.

Max static load: 440 N

Environmental sealing is achieved by using the 0.4mm gasket supplied and by sealing the mounting screw threads when installing.

2 keys.

Steel shaft and cam for greater strength. Not die cast alloy!

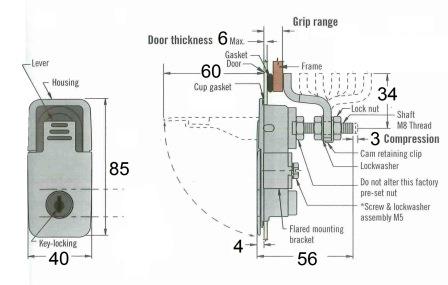

Grip range = 16-26 mm when cam forward.

                        46-56 mm when cam reversed.

Note: The M5 x 16 mounting screw and lock washer supplied is designed for a max door skin thickness of 6 mm. For thicker materials allow for the door skin thickness +10 mm.

Add 0.4mm to door thickness for the cup gasket.



Part No Description
AL00810 Compression latch Lift & Turn - Black.
