Ratchet Adjustable Top Links
Aline Trading P/L present two versions of our heavy duty ratchet adjustable top links.

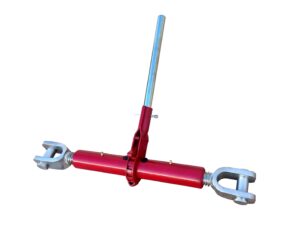

The AL01972 is a standard length and is suitable for conventional top link applications. Or as an adjuster arm.
The AL01974 is a longer version designed for use as an as an adjuster arm on agricultural and industrial machines.
Features:
– 12 mm thick clevis yokes.
– Metric M34 x 6 screw thread.
– Heavy duty outer tube and handle assembly.
– Greasable.
PRODUCT SPECS

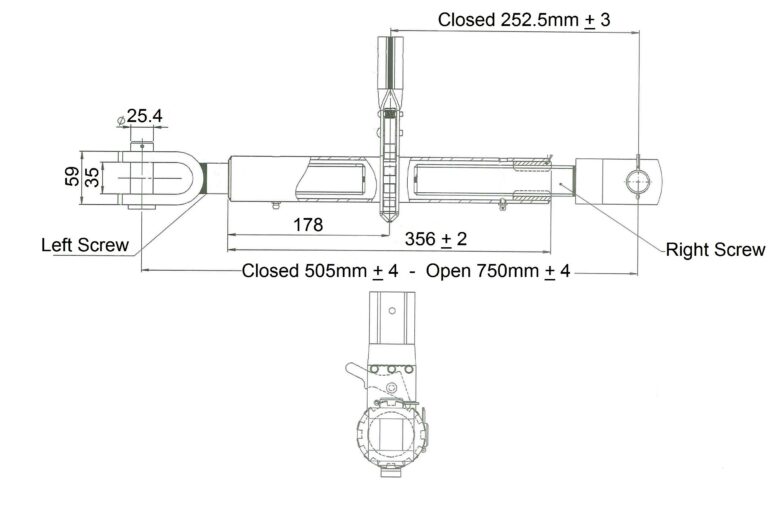

| Part No | AL01972 |
| Unit Weight | 7 kg |
| Closed Length | 505mm + – 4mm |
| Open Length | 750mm + – 4mm |
| Clevis Pin Diameter | 25.4mm ( 1″ ) |
PRODUCT PHOTOS

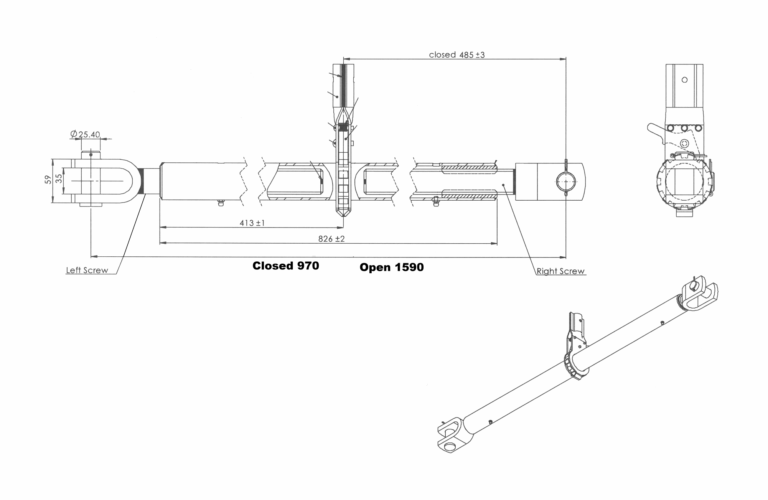

| Part No | AL01974 |
| Unit Weight | 13.5 kg |
| Closed Length | 970mm + – 6mm |
| Open Length | 1590mm + – 6mm |
| Clevis Pin Diameter | 25.4mm ( 1″ ) |
