RGW3200

The RGW 3200 is a 2 speed hand winch that allows for optimum performance with minimal effort.

Position the handle to suit the load and wind speed required.

 Features:

-          Compact design.

-          Formed reinforcements in frame for added frame strength

-          Very low torque required for ease of operation

-          One way Ratchet. Free spool in off direction.

-          High quality one piece hardened steel gears.

-          Superior finish quality for appearance and corrosion resistance.

-          Extensively tested and QA inspected.

-          2 winding positions to give the speed and torque required for the job.

-          Standard winch is supplied with cable and safety hook.



 Specifications
Part No AL01643
Model RGW3200-19
Capacity 3200 lbs - 1435 Kg
Ratio 1
  5.4:1
Ratio 2
 17.5:1
Drum 170mm diam x 64 Wide
Weight 7.7Kg
Cable  6.35mm x 15m

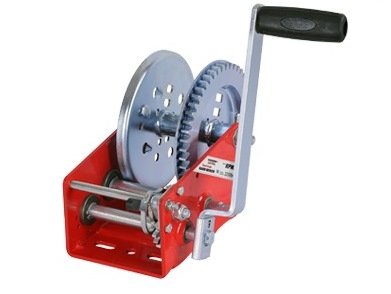

Photo below shows bare winch only. No cable.
