RBW1500The RBW1500 brake winch is rated at 1500 lb (681kg) and is one of our most popular winches and is suited to applications that require additional control and safety during the winching operation. The automatic brake will hold the load in position.
Features include:
- Compact design requiring minimal space.
- Very low torque required for easy operation.
- Formed reinforcements in frame for added frame strength.
- Internally lubricated bushing and pinion shaft bearing for long life and ease of operation.
- Heat treated one piece gears.
- Gearbox and brake all sealed by strong steel cover to ovoid dust and rain.
- Safety ratchet gear to prevent slipping.
- Load activated brake. Standard.
- Brake is completely automatic and will hold the load in any position. Recoiling is impossible.
Aline Trading offers the RBW1500 in 3 standard versions as listed below.
| Part Number | Description |
| AL01566 | Winch only. No cable or strap |
| AL01572 | With cable and safety hook |
| AL01578 | With strap and safety hook |
| Specifications | |
| Capacity | 1500 lb ( 681 Kg) |
| Gear ratio | 4.3:1 |
| Hand force required | 16 lb |
| Hub diameter | 45mm |
| Spool diameter | 133mm |
| Maximum spool capacity | 18m of 4mm wire |
| Cable | 4mm diameter x 10m long. |
| Strap | 50mm x 6.1m long. - 1.5t rated. |
| AL01566 | 3.6 Kg |
| AL01572 | 4.4 Kg |
| AL01578 | 3.9 Kg |

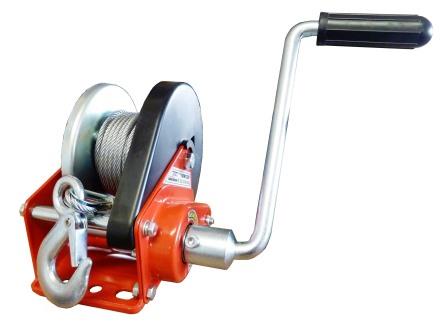

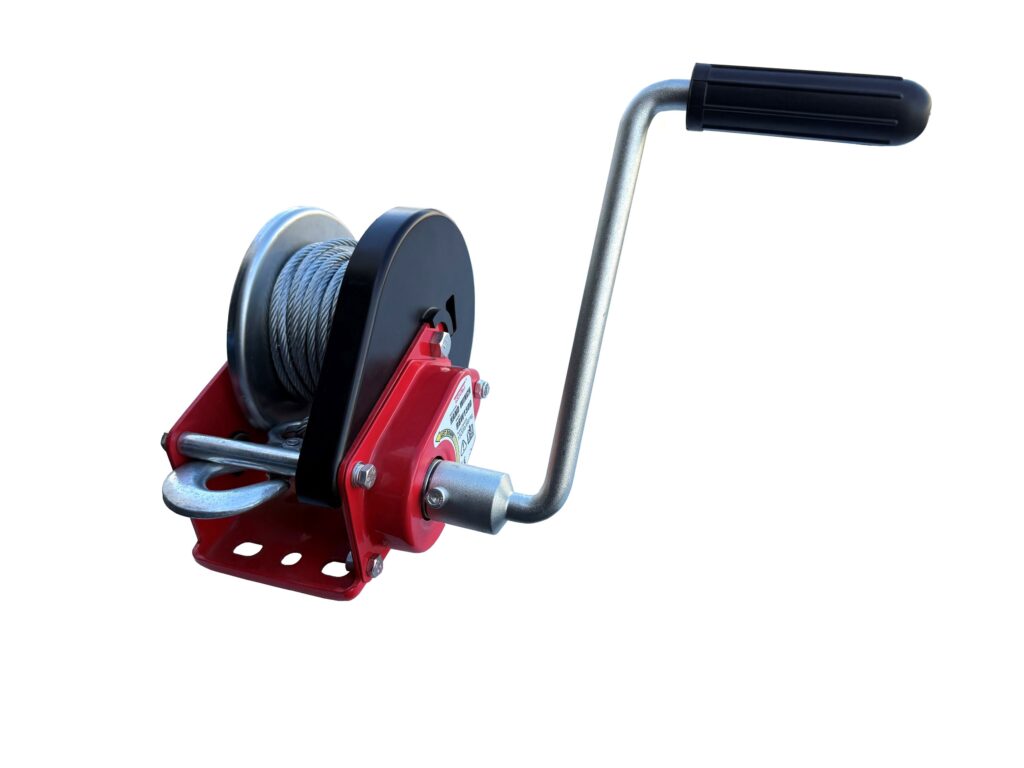

AL01572 shown.
