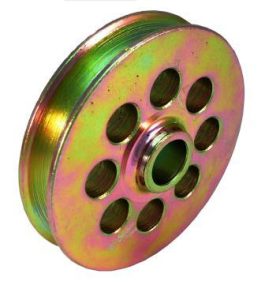

GUIDE ROLLER

Part No AL01564

These cable rollers are made from solid steel and zinc plated. They are the same roller as used in our AL01563 roller assemblies.

The roller on its own can be used for many applications including fabricated cable guides and door rollers.

Specifications
Part No AL01564
Material Steel - zinc plated
Diameter 88mm
Width 16.7mm
Bore 16.27mm
Width across hub. 27.7mm
