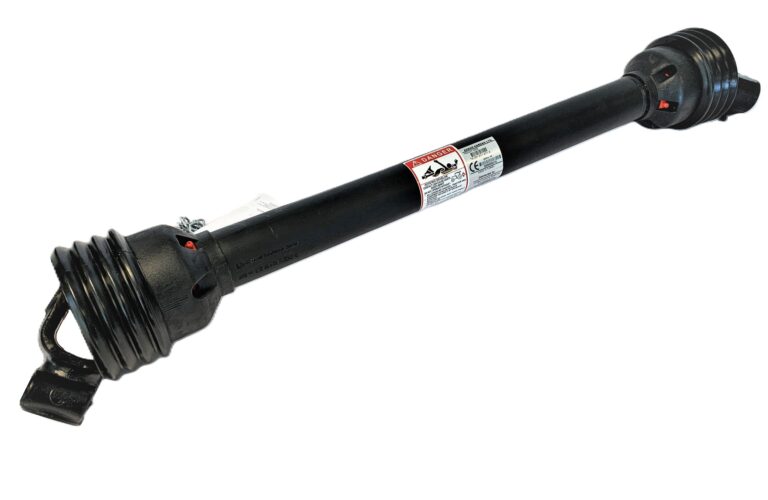

SERIES 2 PTO - 21/31 HP

Aline Trading Pty Ltd stock a diverse range of complete PTO shafts and components.

Listed below are some of the common versions we supply. Other combinations can be assembled to order.

We welcome orders from one off specials to large volume OEM requirements.

Please contact us today to discuss your requirements.



Notes:

-  Lengths shown below are measured from bearing centre to bearing centre.

-  Shaft extension - Shafts should be installed with a 50% (half) tube overlap under normal conditions. A minimum overlap of one third is recommended under all conditions. Extensions above this will result in premature shaft wear / failure.


Common terms:

*   QR = Quick release. Refers to yoke or clutch hub style.

*   CB = clamp bolt. Refers to yoke or clutch hub style.

*   Plain = Non splined bore. Normally supplied with keyway and grub screws for  attachment.

*    Plain CB = as per plain above with the addition of a clamp bolt for attachment.

*    13/8Z6 = Standard 540 RPM 13/8” diameter 6 spline.

*    13/8Z21 = Standard 1000 RPM 13/8” diameter 21 spline.

13/4Z20 = Standard 1000 RPM 13/4” diameter 20 spline.

13/4Z6 = Standard 1000 RPM 13/4” diameter 6 spline.

SPECIFICATIONS
BEARING 540 - RPM  1000 - RPM

MAX

DYNAMIC

TORQUE

POWER   TORQUE POWER TORQUE
KW HP N.m KW HP N.m
23.8 x 61.3 15 21 270 23 31 220 450
Values related to 5 degree joint angles, 1000hrs life.
 Standard Series 2 Shafts
 Part No

 Length

X-X

 End 1
 End 2
 AL02071
  610
 13/8Z6 QR
 13/8Z6 QR
AL02069 610 1" PLAIN CB 1" PLAIN CB
AL02072 610 13/8Z6 QR 13/8Z6 CB
AL02073 610 13/8Z6 QR 1" PLAIN
AL02074 610 13/8Z6 QR 25mm PLAIN
AL02075 610 13/8Z6 QR 30mm PLAIN
AL02077 610 25mm PLAIN 25mm PLAIN
AL02084 810 13/8Z6 QR 13/8Z6 QR
AL02085 810 11/4 PLAIN CB 11/4 PLAIN CB
AL02086 1010 13/8Z6 QR 13/8Z6 QR
AL02088 1010 13/8Z6 QR 25mm PLAIN
AL02089 1010 13/8Z6 QR 30mm PLAIN
AL02091 1210 13/8Z6 QR 13/8Z6 QR
AL02095 1210 13/8Z6 QR 1" PLAIN
Series Series 2 shafts with clutch.
Part No

Length

X-X

Yoke

End

Clutch

End

Clutch
 AL02070  660  13/8Z6 QR
 13/8Z6 CB
 YK2-600Nm
