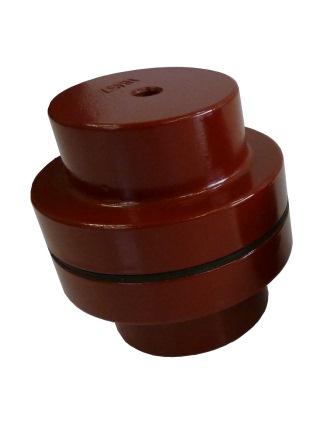

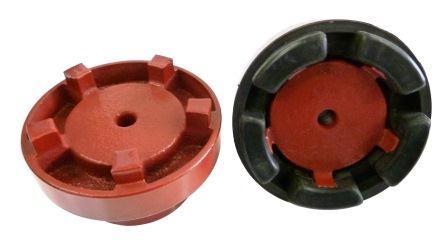

FLEXIBLE DISC TYPE COUPLINGS
Suitable for use on electrical or combustion driven units where some shaft misalignment may occur. Introduces limited backlash to absorb lateral, angular and axial forces while maintaining some rotational rigidity.

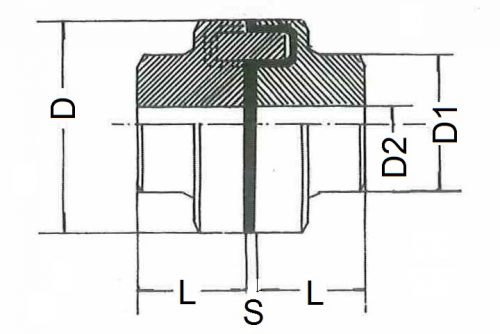

| Part No | Model | Nominal Load | Max | D2 | D1 | D | L | S | |
| Kg/m | KW/100rpm | rpm | |||||||
| AL01498 | PC67 | 2.2 | .22 | 10000 | 9-28 | 46 | 67 | 30 | 2.5+.5 |
| AL01499 | PC82 | 5.0 | .51 | 8000 | 10-32 | 53 | 82 | 40 | 3.0+1 |
| AL01500 | PC97 | 10.5 | 1.07 | 7000 | 12-42 | 69 | 97 | 50 | 3.0+1 |

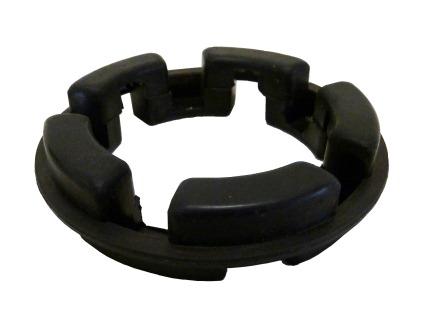

| Replacement Inserts | |
| Part No | Fits |
| AL01347 | PC67 |
| AL01348 | PC82 |
| AL01349 | PC97 |
