FLEX COUPLINGS

 Flexible couplings are fixed joints that are used to connect two normally aligned shafts without any angle or distance variation.

According to the application there are models with either single or double specially designed rubber discs which help the couplings to be used either as dampers in vibration shocks, knocks or short torque increases or to compensate for slight misalignments of the shafts being connected.

 Part No
 End 1
 End 2
 O/A Length Inserts
 AL01251  13/8Z6 CB
 13/8Z6 CB
 322 mm
2
 AL01252  13/8Z6 CB
 13/8Z6 CB

 180 mm

1
 AL02823  13/8Z6 CB
 13/8Z6 CB

 202 mm

2

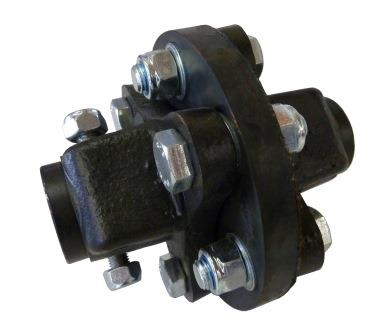

AL01252. Shown below.

Pin Centres = 128mm

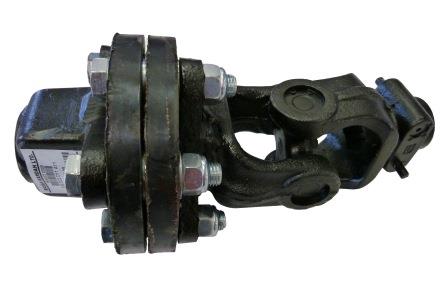

AL02823 Shown Below.

Pin Centres = 150mm

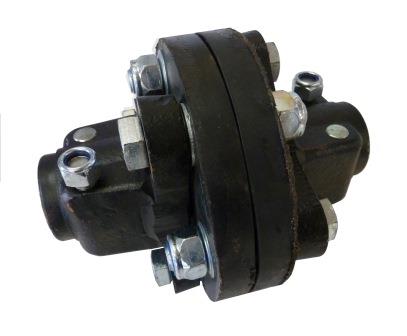

AL01251 Shown below.

Replacement Inserts
Part No Description

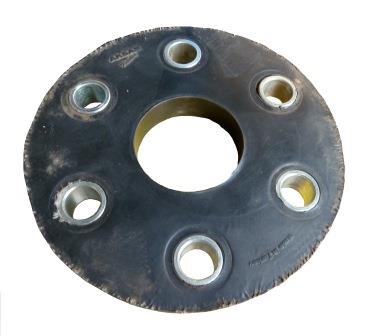

AL00122

160mm Diam x 18mm thick.

  6 Hole with steel inserts.
