Friction overrun clutch

Friction and overrunning clutches are combined clutches in which a friction clutch protects the agricultural machine and drive shaft against torque peaks, while the overrunning clutch eliminates the effects of rotating masses when a tractor in operation is suddenly stopped or slowed down.

This device is fitted to the implement side of the PTO shaft.

Aline Trading present a select range of products suitable for popular applications. Other items are available to order for OEM applications.

Part No Model Torque
Input Output
  AL00310
  BSD1
  1200Nm
  T6 YOKE
  13/8Z6 CB
  AL00312
  BSD1
  1200Nm
  T6 YOKE
  13/4Z20 CB
AL00320 BSD1 1200Nm T6 YOKE 13/8Z6 QR
AL00331 BSDM1 1200Nm 13/8Z6 SHAFT 13/8Z6 CB
  AL00313
  BSD3
  1700Nm
  T8 YOKE
  13/4Z20 CB
AL00385 BSD5 3000Nm T9 YOKE 13/4Z20 CB

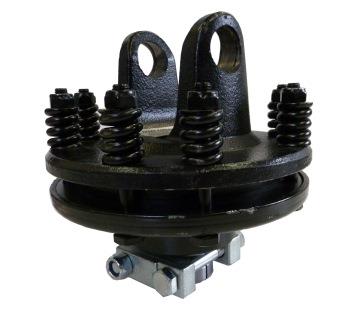

P/No AL00310

T6 Yoke - 13/8Z6 CB

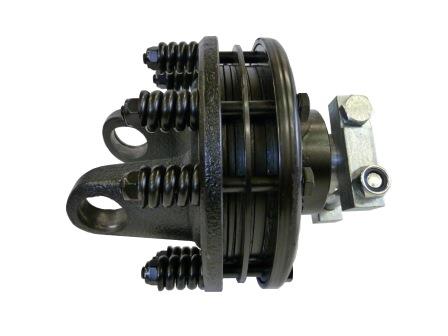

P/No AL00313

T8 yoke - 13/4Z20 CB
