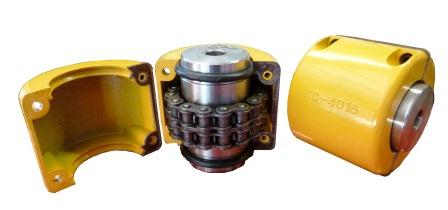

CHAIN SHAFT COUPLINGSChain couplings are ideal where high static or starting loads apply.
They are easily disconnected and are composed of two hardened steel sprockets connected by duplex roller chain.
Each coupling is supplied with an aluminium alloy casing.
| Part No | Model | Bore | Dimensions | Weight | ||||
| Min | Max | A | B | C | D | Kg | ||
| AL01046 | 4016 | 15 | 30 | 79.4 | 50 | 75 | 92 | 1.8 |
| AL01048 | 5016 | 18 | 40 | 99.7 | 64 | 87 | 110 | 3.25 |
| Transmission Capacity KW |
||||||||
| Part No | Shaft Diam | RPM | ||||||
| 10 | 500 | 1000 | 1500 | 2500 | 3600 | 4800 | ||
| AL01046 | 30mm | .41 | 8.85 | 15.3 | 21 | 31.9 | 43 | 54.9 |
| AL01048 | 40mm | .78 | 16.8 | 28.9 | 39.9 | 60.6 | 81.6 | - |
| KW x 1.34 = HP | ||||||||
